Cisco UCS C220 M5 1U Rack Server – Configure to Order
UCS C220 M5
Cisco

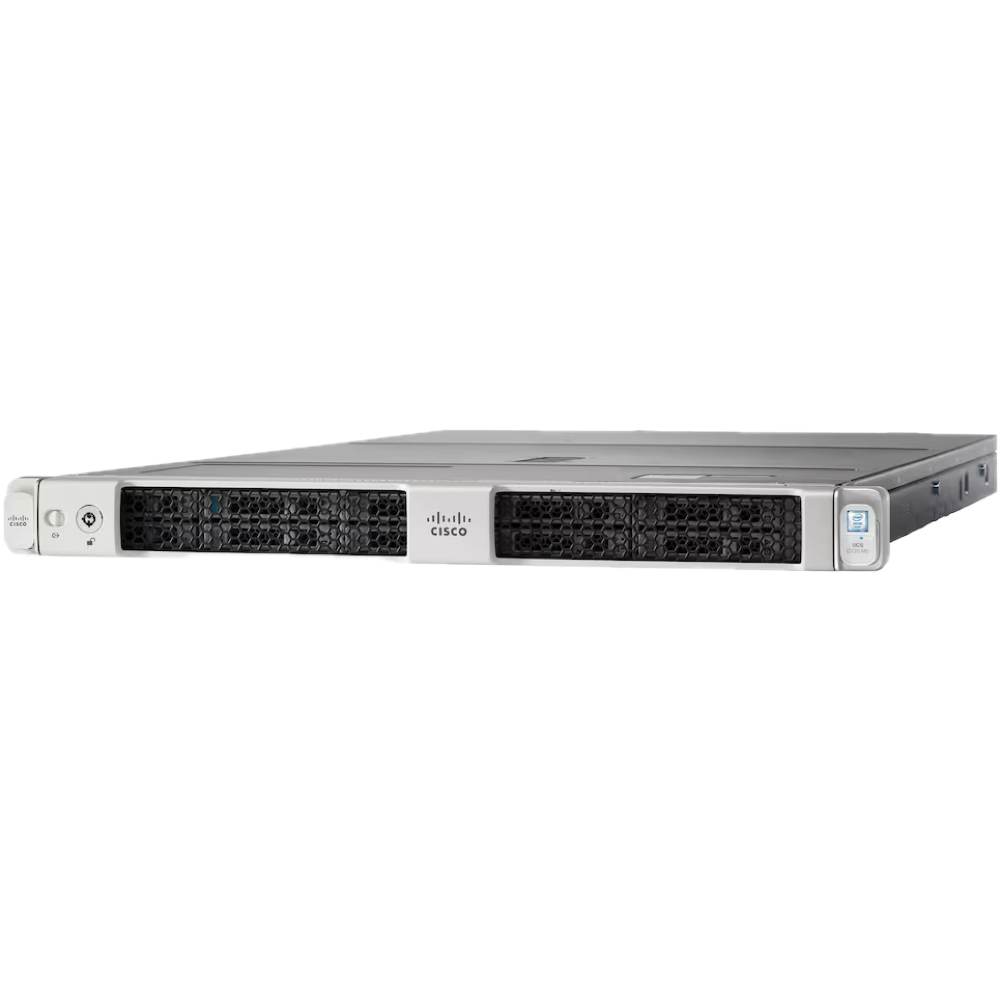

Cisco UCS C220 M5 — dual-socket 1U rack server built for density
The C220 M5 packs a full two-socket Intel Xeon Scalable platform into a 1U chassis, making it one of the most space-efficient dual-CPU servers Cisco has shipped. It supports both first- and second-generation Xeon Scalable processors, so buyers can match core count and clock speed to workload rather than settling for whatever a single generation offers.
Memory scales across 24 DDR4 DIMM slots from 8GB to 128GB modules, with Intel Optane DC Persistent Memory support for applications that benefit from large, persistent working sets. Storage is genuinely flexible: backplane options run from ten 2.5-inch SAS/SATA/SSD bays to an all-NVMe configuration, or four 3.5-inch bays where raw capacity matters more than drive count.
Networking is handled by dual embedded 10GBASE-T ports plus a dedicated mLOM slot that accepts anything from 1Gbps up to 100Gbps adapters, so the same chassis can serve as a modest edge node or a high-throughput cluster member. Cisco's UCS management stack, Intersight, IMC, UCS Manager carries over unchanged from new-build deployments.
Every C220 M5 sold through our configurator is built to the CPU, memory, storage and network combination you specify, not fixed at a single spec.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
Normally available from . These chassis are out of stock at the moment:
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockAbout the Cisco UCS C220 M5
The Cisco UCS C220 M5 configurator lets you build a dual-socket 1U server around the workload rather than a fixed spec sheet, choose your Xeon Scalable generation and core count, memory capacity up to the DIMM limit, and a backplane that suits either drive-bay density or an all-NVMe build.
What you're configuring
Processor, memory, storage backplane, RAID controller and network mezzanine (mLOM) are all selectable below. Pick a single-CPU build for a lighter workload or fill both sockets for virtualisation and clustered database work the same 1U chassis and Cisco UCS management stack apply either way.
Typical Use Cases
- Virtualisation hosts running VMware ESXi, Hyper-V or Proxmox across dual Xeon Scalable sockets
- Database servers using Intel Optane DC Persistent Memory as a fast, persistent tier
- High-density Cisco UCS cluster nodes managed centrally via Intersight or UCS Manager
- All-NVMe storage nodes for latency-sensitive applications and analytics workloads
- Edge or branch deployments needing dual-socket compute in a single rack unit
- General-purpose application servers where 3.5-inch bays give more usable capacity per rack unit
- CI/CD and build servers benefiting from high core counts in a compact footprint
Key Specifications
| Chassis | |
|---|---|
| Form Factor | 1RU rack server |
| Rail Options | Cisco ball-bearing rail kit or friction rail kit with optional reversible cable management arm |
| Processor | |
| Processor Options | Intel Xeon Scalable processors (1 or 2) or second-generation Intel Xeon Scalable processors (1 or 2) |
| Memory | |
| DIMM Slots | 24 DDR4 DIMM slots |
| Memory Capacity Options | 8, 16, 32, 64, and 128 GB |
| Memory Speed | up to 2666 MHz |
| Persistent Memory Support | Intel Optane DC Persistent Memory (128G, 256G, 512G) |
| Expansion Slots | |
| PCIe Slots | 2 PCIe 3.0 slots plus 1 dedicated 12-Gbps RAID controller slot and 1 dedicated mLOM slot |
| Storage Controllers | |
| Internal RAID Controller | Cisco 12-Gbps Modular RAID Controller (PCIe 3.0) with 1- or 2-GB Flash-Backed Write Cache (FBWC) |
| Internal HBA Option | Cisco 12-Gbps Modular SAS Host Bus Adapter (HBA) |
| External Controller | Cisco 12-Gbps 9400-8e SAS HBA |
| RAID Controller Drive Support | up to 10 SAS and SATA Hard-Disk Drives (HDDs), SSDs, or NVMe PCIe SSDs |
| Storage | |

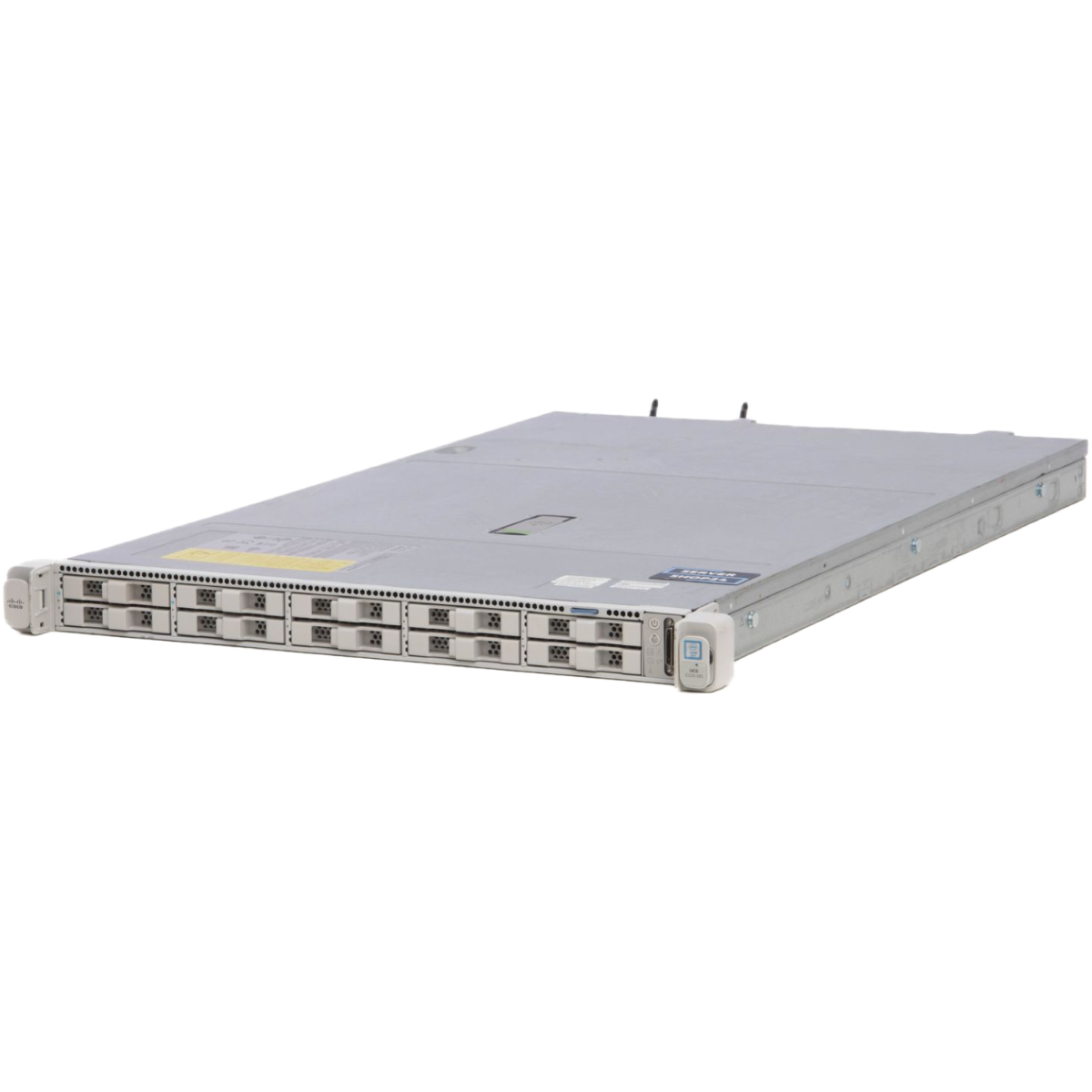

| Internal Storage Option 1 | Up to 10 x 2.5-inch SAS and SATA HDDs and SSDs and up to 2 NVMe PCIe drives |
| Internal Storage Option 2 | Up to 10 x 2.5-inch NVMe PCIe drives |
| Internal Storage Option 3 | Up to 4 x 3.5-inch SAS and SATA HDDs and SSDs and up to 2 NVMe PCIe drives |
| FlexFlash SD Cards | Dual internal Cisco FlexFlash Secure Digital (SD) cards (32, 64, and 128 GB) |
| BMC MicroSD Card | 32 GB |
| M.2 Storage Options | Dual M.2 SATA SSD or NVMe |
| Networking | |
| Embedded Network Ports | Dual 10GBASE-T Intel x550 Ethernet ports |
| mLOM Slot | Dedicated mLOM slot that can flexibly accommodate 1-, 10-, 25-, 40-, and 100-Gbps adapters |
| Power | |
| Power Supply Options | Hot-pluggable, redundant 770W AC, 1050W AC, 1050W DC, and 1600W AC |
| Management | |
| Management Software | Cisco Intersight, Cisco IMC, Cisco IMC Supervisor, Cisco UCS Manager, Cisco UCS Central Software, Cisco UCS Director, Cisco UCS Performance Manager |
