HPE ProLiant DL360 Gen9 Refurbished 1U Server
ProLiant DL360 Gen9
HPE

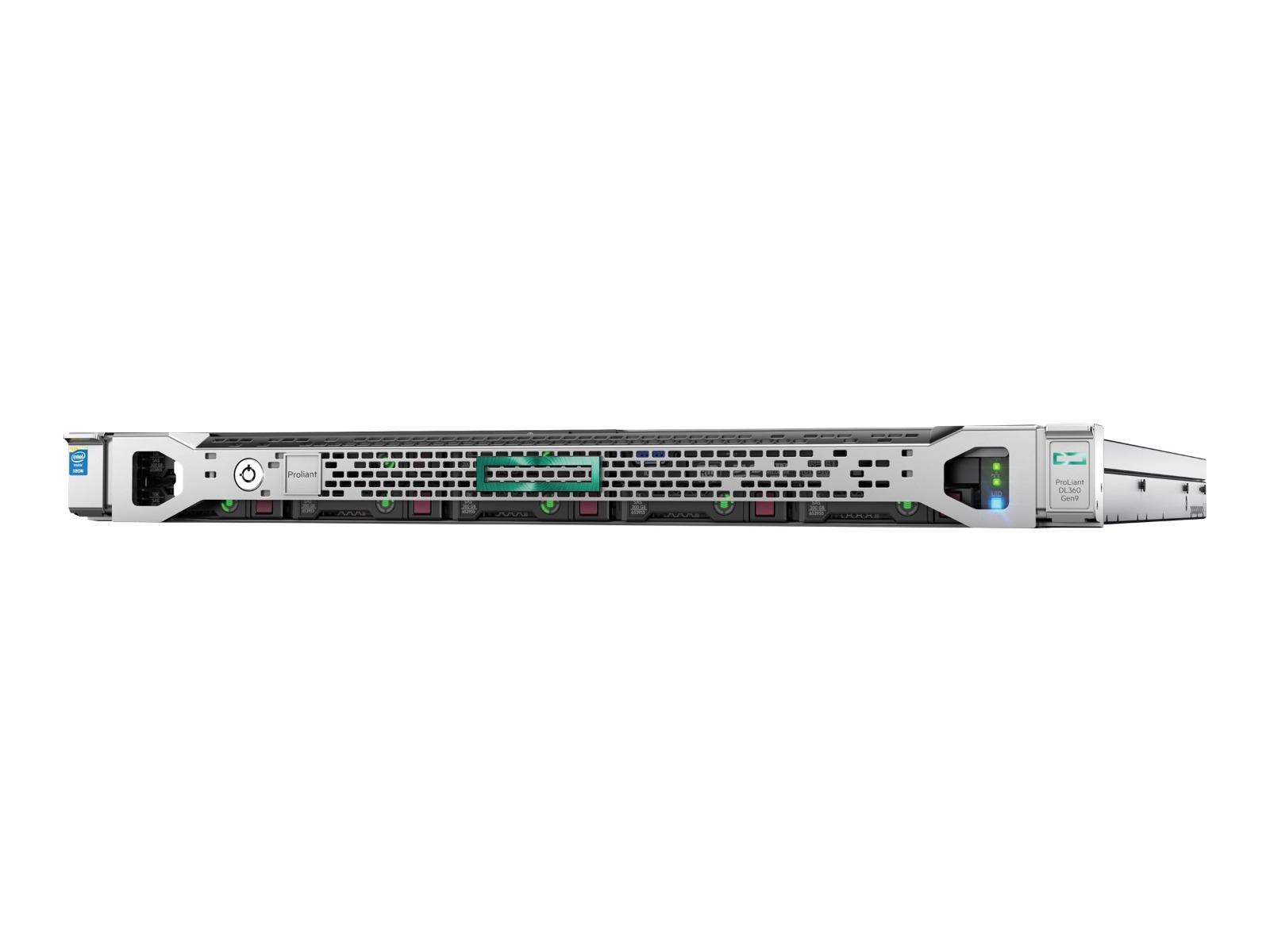

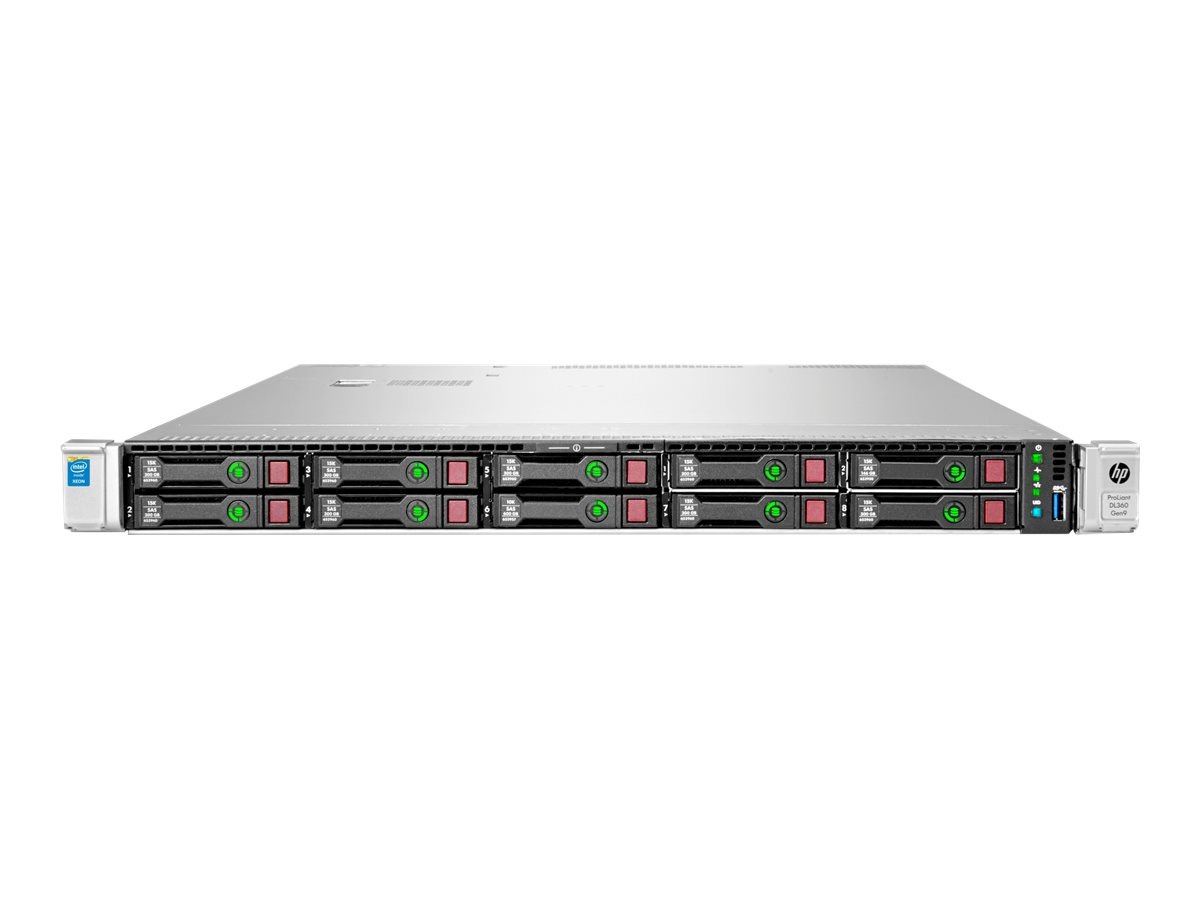

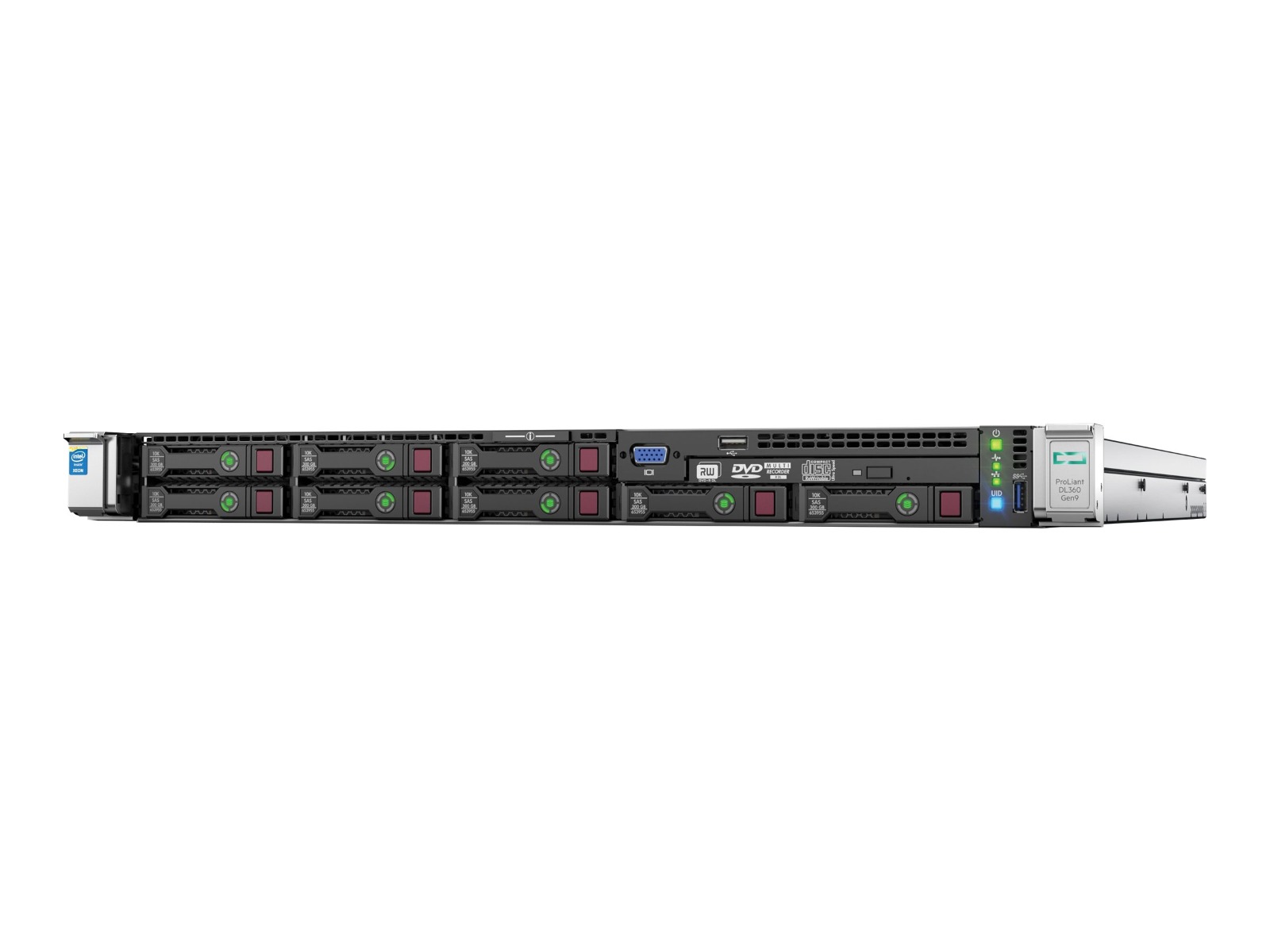

HPE ProLiant DL360 Gen9 - Refurbished 1U Rack Server
The DL360 Gen9 packs a dual-socket, 1U rack chassis with 24 DDR4 DIMM slots and support for up to eight SFF or four LFF hot-plug drives, making it one of the most space-efficient general-purpose platforms HPE has produced.
This generation moved to Intel Xeon E5-2600 v3 processors, bringing meaningful gains in per-core throughput and memory bandwidth over the previous DL360p Gen8, along with HP SmartMemory DDR4 running at up to 2,133 MHz.
On the capability side you get a choice of Smart Array or Smart HBA controllers, embedded 4x1GbE plus a FlexibleLOM slot, dual single-wide GPU support, five USB 3.0 ports, and iLO 4-based lights-out management with UEFI and HP RESTful Interface Tool scripting.
At Compuwyze every DL360 Gen9 is configured to order: pick your processor pairing, memory capacity, drive backplane, RAID or HBA controller, and networking mezzanine before it ships, backed by our 3 year warranty.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockAbout the HPE ProLiant DL360 Gen9
The ProLiant DL360 Gen9 remains one of HPE's most widely deployed 1U platforms, pairing dual Intel Xeon E5-2600 v3 sockets with 24 DDR4 DIMM slots in a chassis designed for dense, general-purpose computing.
Use the configurator below to choose processors, memory, drive backplane and storage controller, and networking to match the workload you're building for, whether that's a virtualisation host, a database server, or a compute node in a larger cluster.
All configurations are built to order and tested before dispatch, and every DL360 Gen9 leaving CompuWyze carries a 12-month warranty.
Typical Use Cases
- Virtualisation hosts running VMware ESXi, Hyper-V or Proxmox clusters
- Departmental SQL Server or MySQL database hosts needing FBWC-backed RAID
- High-density compute nodes for HPC or scientific workloads
- Big Data and analytics platforms processing large working sets in memory
- Low-latency transactional systems for financial services applications
- Edge or branch-office servers where rack space is limited to 1U
- Small business file, print and application servers consolidated onto one host
- GPU-assisted virtual desktop infrastructure using single-wide accelerators
Key Specifications
| Processor | |
|---|---|
| Processor Type | Intel Xeon E5-2600 v3 series |
| Number of Processors | Up to two |
| Cores Per Processor | 4/6/8/10/12/14/16/18 |
| Maximum Speed | PCIe 3.0 |
| Memory | |
| Memory Type | HP SmartMemory DDR4 |
| Memory Slots | 24 |
| Maximum Speed | up to 2,133 MHz |
| Maximum Memory | 768 GB max |
| Storage | |
| Drive Support | 8 + 2 SFF/4 LFF max, HDD/SSD |
| Storage Controllers | |
| Storage Controller | Standard HP Dynamic Smart Array B140i |
| Performance RAID | HP Flexible Smart Array or HP Smart Host Bus Adapter Controllers |
| Networking | |
| Network Controller | 4 x 1GbE embedded + FlexibleLOM slot |
| Expansion Slots | |
| PCIe Expansion Slots | up to three available slot(s) |
| Chassis | |
| Form Factor | Rack (1U) |
| Dimensions (SFF) | 27.5'' |
| Dimensions (LFF) | 29.5'' |
| Power | |
| Power Supply Type | Up to 94 percent efficient (Platinum Plus) with HP Flexible Slot FF |
| Management | |
| Infrastructure Management | HP OneView and HP iLO Advanced |
