Xeon Server Processors UK: Intel Xeon and AMD EPYC CPUs

Refurbished server processors for upgrading, repairing or filling the empty second socket in a rack or tower server you already run. For Dell PowerEdge 14th-generation and HPE ProLiant Gen10 platforms on socket LGA3647, choose Xeon Scalable Silver, Gold and Platinum processors. 13th-generation PowerEdge and ProLiant Gen9 machines take Xeon E5 v3 and v4 CPUs, four-socket scale-up hosts need the Xeon E7 family, and single-socket entry servers run on Xeon E3 processors or the newer Xeon E range, while SP3-socket platforms take AMD EPYC server CPUs.

Items 1-12 of 187

Buying Guide & FAQs

Choosing a refurbished server processor

A processor swap is often the cheapest way to get more from a Xeon server you already own. You can fill an empty second socket, step up from a 10-core Gold 5215 to an 18-core Gold 6240, or replace a failed CPU without retiring the chassis. Server CPUs are less forgiving than desktop parts, though: socket, generation, BIOS level and the processor already fitted all have to line up. The notes below cover the Intel server parts and AMD EPYC processors in our range, what the model numbers tell you, and how to match a chip to the workload rather than to the biggest figure on the spec sheet.

At a glance

Xeon Scalable, first generation
Skylake-SP Silver, Gold and Platinum processors on socket LGA3647, as used in PowerEdge 14th-generation servers such as the R640 and R740 and in ProLiant Gen10 models such as the DL380 Gen10. Examples include the Gold 5120 (14 cores, 2.20GHz, 105W), Gold 6130 (16 cores, 2.10GHz, 125W) and Gold 6152 (22 cores, 2.10GHz, 140W).
Xeon Scalable, second generation

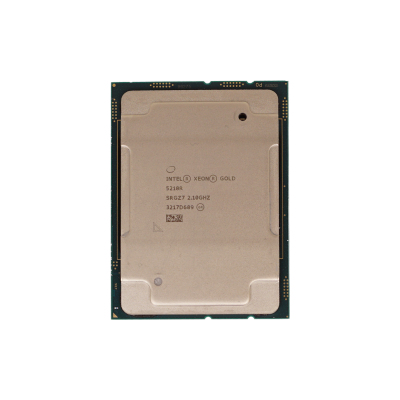

Cascade Lake parts on the same LGA3647 socket, including the Silver 4216 (16 cores, 2.10GHz, 100W), Gold 5215 (10 cores, 2.50GHz, 85W) and the refreshed Gold 5218R (20 cores, 2.10GHz, 125W). Many SKUs support faster memory than their first-generation equivalents.
Xeon E5
v1 and v2 processors on LGA2011 with DDR3, found in PowerEdge 12th-generation and ProLiant Gen8 servers; v3 and v4 on LGA2011-3 with DDR4 for 13th-generation PowerEdge and ProLiant Gen9. The two sockets look alike but are not interchangeable.
Xeon E7
Scale-up processors for four- and eight-socket servers, chosen where a single host needs very large memory capacity rather than a cluster of smaller machines.
Xeon E3 and Xeon E

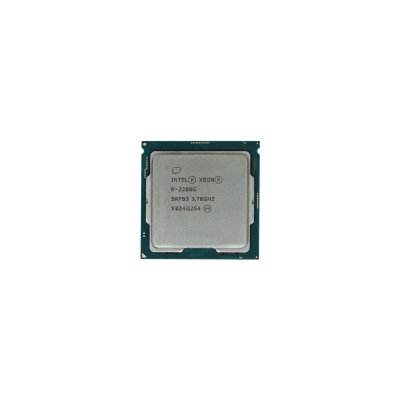

Single-socket processors with ECC unbuffered memory for entry rack servers, towers and workstations. Xeon E-2100 and E-2200 parts need a C246-class chipset, so they will not run in an older E3 board even where the socket looks familiar.
AMD EPYC

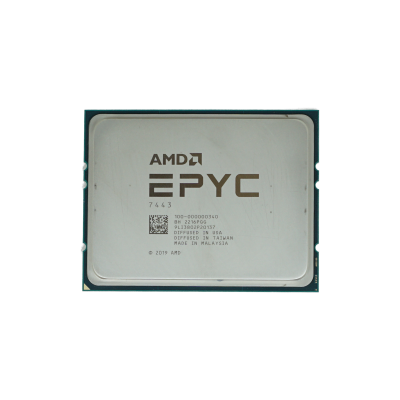

Socket SP3 processors with eight memory channels per socket. A P suffix, as on the 64-core EPYC 7713P, marks a single-socket-only part; an F, as on the EPYC 73F3, marks a frequency-optimised model; standard parts such as the EPYC 7443 run in one or two sockets.
Intel model suffixes

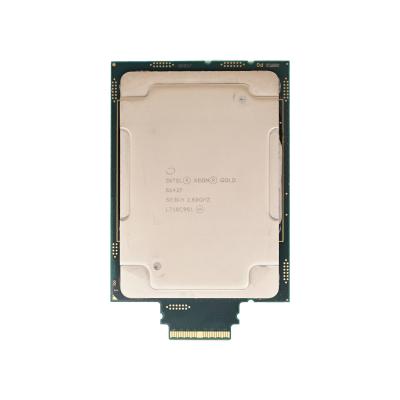

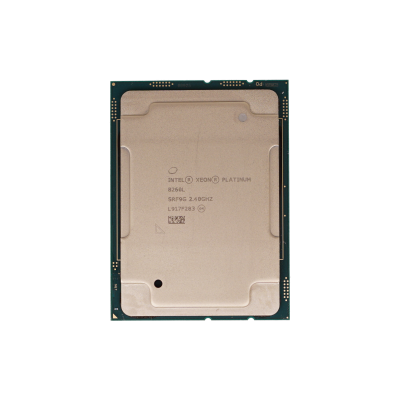

F denotes an integrated Omni-Path fabric connector (Gold 6142F), L and M denote higher memory capacity per socket (Platinum 8260L), and R marks the refreshed second-generation range (Gold 5218R).
Identifying a part
Intel S-spec codes such as SR3B4 or SRF8X are printed on the heat spreader and pin down the exact model and stepping. Our listing titles carry them alongside core count, base clock, TDP and cache.

Compatibility checks before you order

Most failed CPU upgrades come down to one of a handful of details. Check each of these against your vendor's documentation for the exact server model.

Socket and generation
The socket must match, and the platform must support the generation. A Cascade Lake Gold 6240 fits the same socket as a Skylake Gold 6130, but the server needs a BIOS release that recognises it.
Matched pairs
In a dual-socket server both processors should be the same model and ideally the same stepping. Mixed pairs are unsupported and many systems will halt at POST.
Heatsinks and fans
Adding a second processor usually means adding a second heatsink of the type your chassis specifies. On some 1U servers, higher-TDP parts also need a performance heatsink or extra fan modules.
Memory
Each processor owns its own memory channels, so DIMM slots wired to the second socket stay inactive until it is populated. Plan server RAM in matched sets across both CPUs to keep every channel working.
Power and TDP
Parts rated at 150W or 160W draw noticeably more than 85W to 105W models. Check the vendor's support matrix, particularly in dense 1U chassis and with lower-wattage power supplies.

Typical deployments

Virtualisation hosts

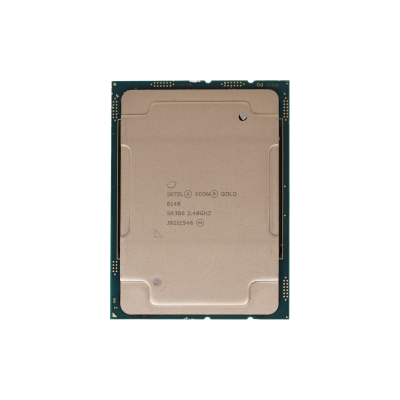

Core count and memory reach matter more than clock speed. A pair of Xeon Gold 6148 processors gives 40 cores at 2.40GHz, and each Scalable CPU brings six DDR4 channels, so filling both sockets doubles the RAM you can address. Our VMware and Hyper-V host sizing guide goes into more detail.

SQL Server and licensed databases

Per-core licensing turns the usual logic round. SQL Server and Windows Server are both licensed by the core, so twelve fast cores often cost less to run legally than twenty slower ones. The 12-core Gold 6136 at 3.00GHz suits this well, with more cache per core than most Gold parts.

Linux web, container and file hosts

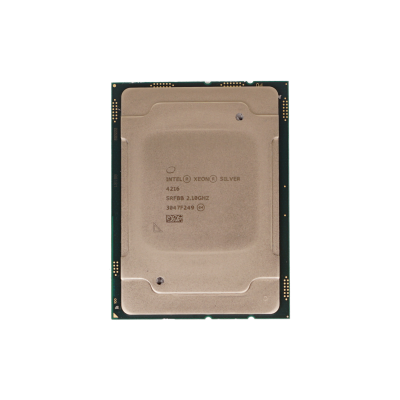

Steady, mixed workloads reward efficiency. The Xeon Silver 4216 offers 16 cores at 100W, a sensible balance of threads, heat and power for Debian or Ubuntu servers running web stacks, containers, backup targets or shares. Silver parts are also easier to cool in 1U chassis than 150W Gold models.

Build farms and batch compute

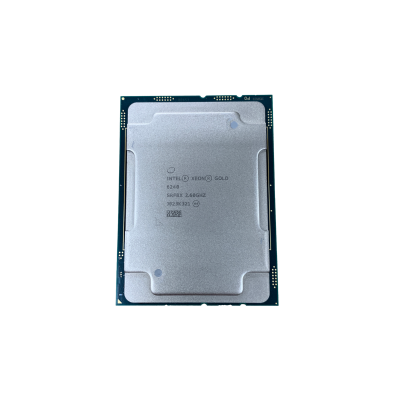

Compilation, rendering and batch analytics scale with cores and sustained clocks. The Gold 6240 with 18 cores at 2.60GHz and the 22-core Gold 6152 both fit this work. Budget for the airflow a 140W to 150W part needs, especially in a fully loaded rack.

Branch office and edge

A single-socket server with a Xeon E3 or newer Xeon E processor handles a domain controller, print and file services or a small hypervisor without fuss. Prioritise clock speed over core count here, and use ECC memory: it is the main reason to choose a Xeon over a desktop chip for an unattended box.

Extending an existing estate

Plenty of ProLiant Gen9 and PowerEdge 13th-generation servers still have useful years left. Xeon E5 v4 parts let you replace a failed CPU like for like or lift an E5 v3 machine to v4 after a BIOS update, while E7 processors keep four-socket hosts running until a planned migration.

Why buy from Compuwyze

  • 12-month return-to-base warranty on processors and other individual parts
  • Free UK delivery on orders over £50, sent by Royal Mail, FedEx, DHL or FDC depending on the order
  • We aim to ship orders for individual parts placed before 2pm on the same day
  • UK delivery is normally next working day once shipped; international orders usually take 2 to 5 days, with FedEx economy and priority options
  • Returns accepted within 30 days, with return shipping paid by the customer
  • Prefer a complete machine? Spec one in our build-to-order server configurator; configured servers carry a 3-year return-to-base warranty and we aim to ship them within 2 business days

Frequently asked questions

Can I upgrade a Gen10 or 14th-generation server from first- to second-generation Xeon Scalable?

In most cases, yes. Both generations use LGA3647, and mainstream PowerEdge 14th-generation, ProLiant Gen10 and Lenovo ThinkSystem servers of that era gained Cascade Lake support through BIOS updates. Flash the latest BIOS while the original processors are still fitted, then swap both sockets together. Third-generation Scalable platforms use a different socket, so these processors are not an upgrade path for newer servers.

Do both processors in a dual-socket server have to match?

Yes. Use two identical models, ideally with the same S-spec so the stepping matches too. If you are adding a second CPU, read the S-spec of the fitted processor from the heat spreader or from the management controller (iDRAC, iLO or XClarity) and order the same part.

What decides the price of a server CPU?

Core count, clock speed and generation do most of the work, followed by suffix: L-series memory-capacity parts and frequency-optimised models carry a premium. Older Xeon E3 and E5 processors are inexpensive because the platforms are mature, while popular second-generation Gold parts hold their value as common upgrades for Gen10 and 14th-generation servers. For licensed workloads, compare licence cost per core as well as purchase price, because the cheapest processor is not always the cheapest system to run.

I only have a part number. How do I find the right processor?

Intel processors carry an S-spec, such as SR3B6 on the Gold 6148, and an ordering code; codes beginning CM or PK are usually tray parts. Dell and HPE also sell processors under their own kit numbers, which are normally the same Intel or AMD silicon, sometimes bundled with a heatsink. If you have an OEM number but no model name, send it to us with your server model and we can help identify the equivalent processor.

Will a processor from a Dell server work in an HPE or Lenovo machine?

For Intel Xeon, generally yes: the silicon is the same whichever vendor first shipped it, so platform support and BIOS level are what matter. AMD EPYC is different. AMD Platform Secure Boot can tie a processor to the vendor of the first system it booted in, and some Dell and Lenovo servers enable it, after which the CPU will not run on another brand's motherboard. If you are buying an EPYC 7443, 73F3 or similar for a mixed estate, check with us before ordering.
