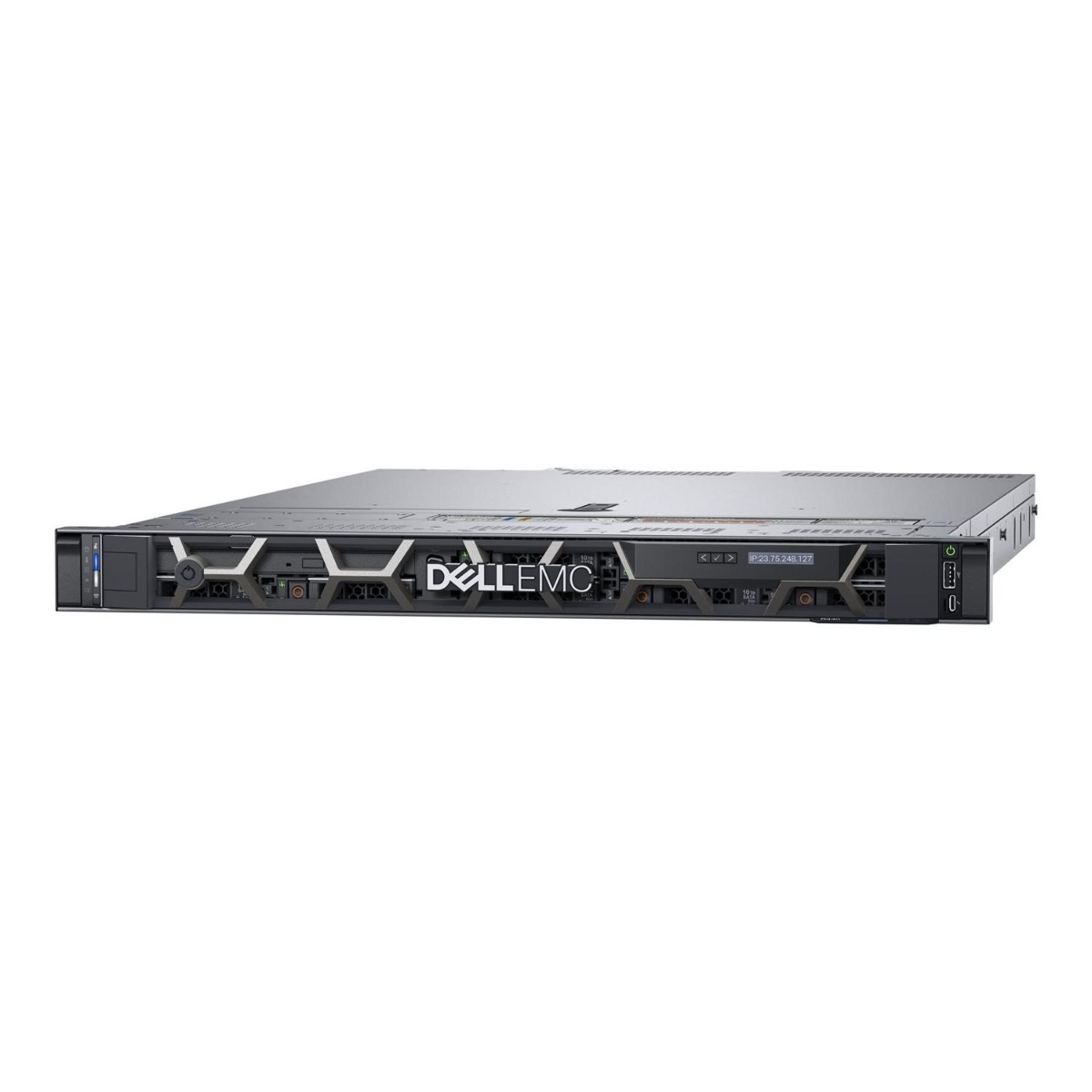

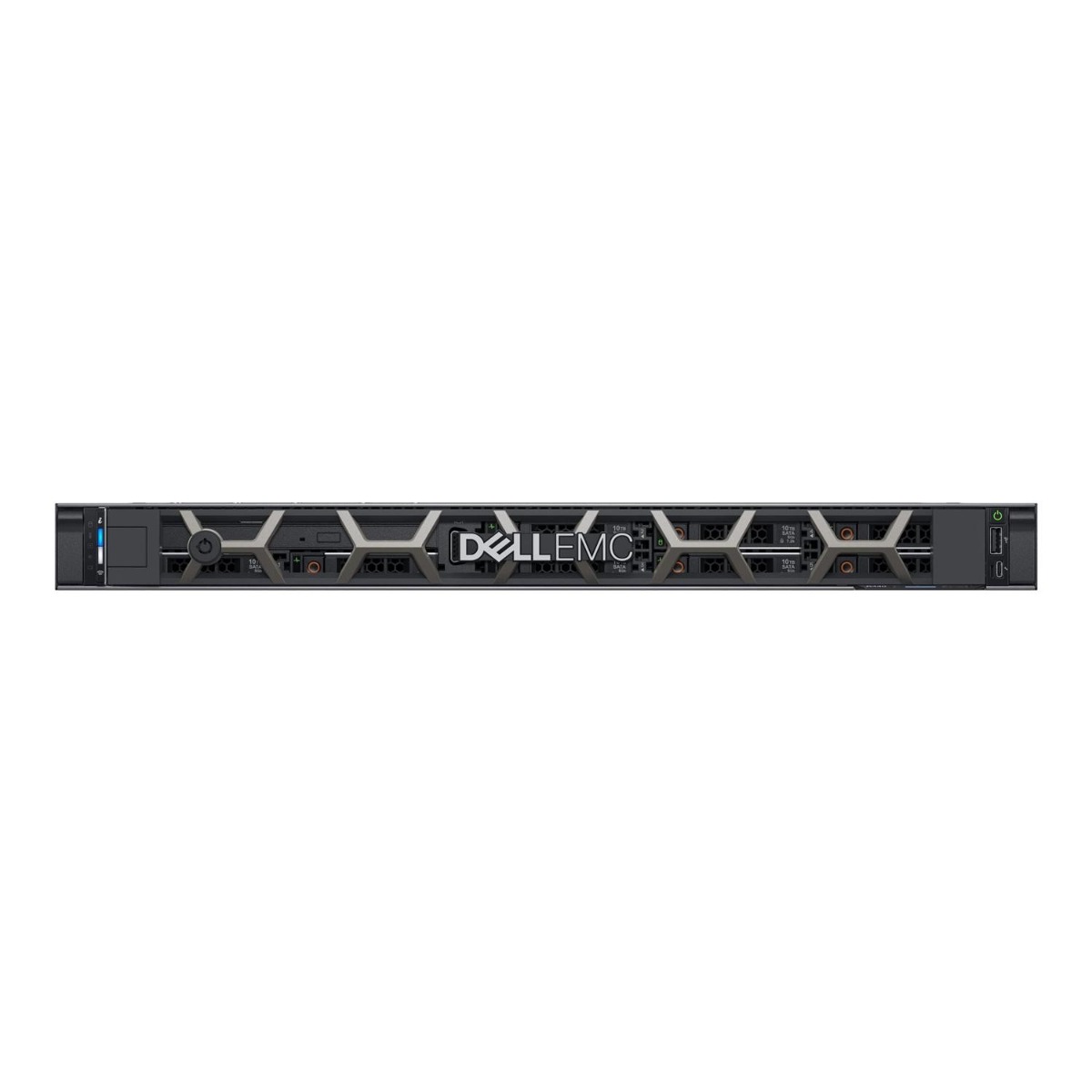

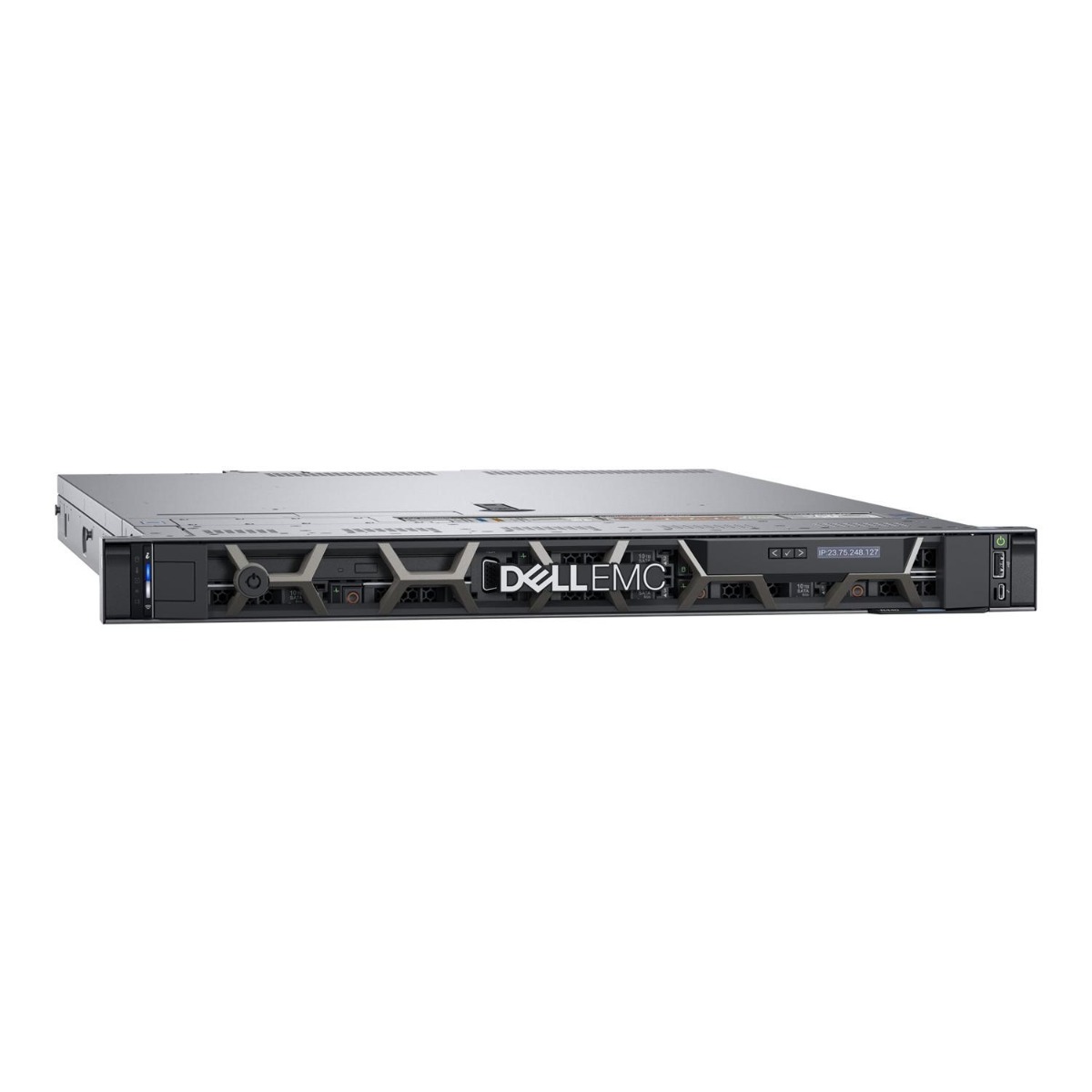

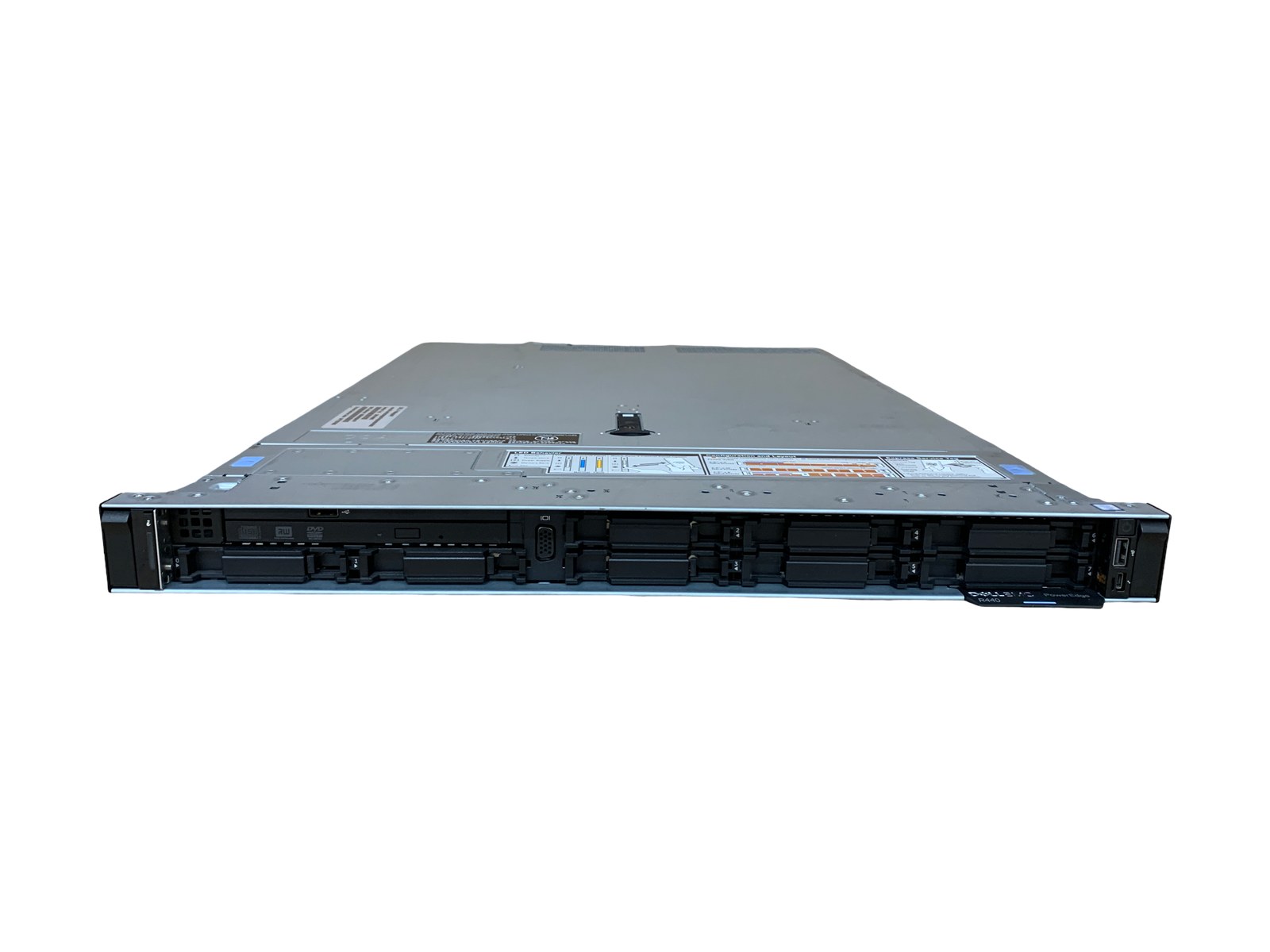

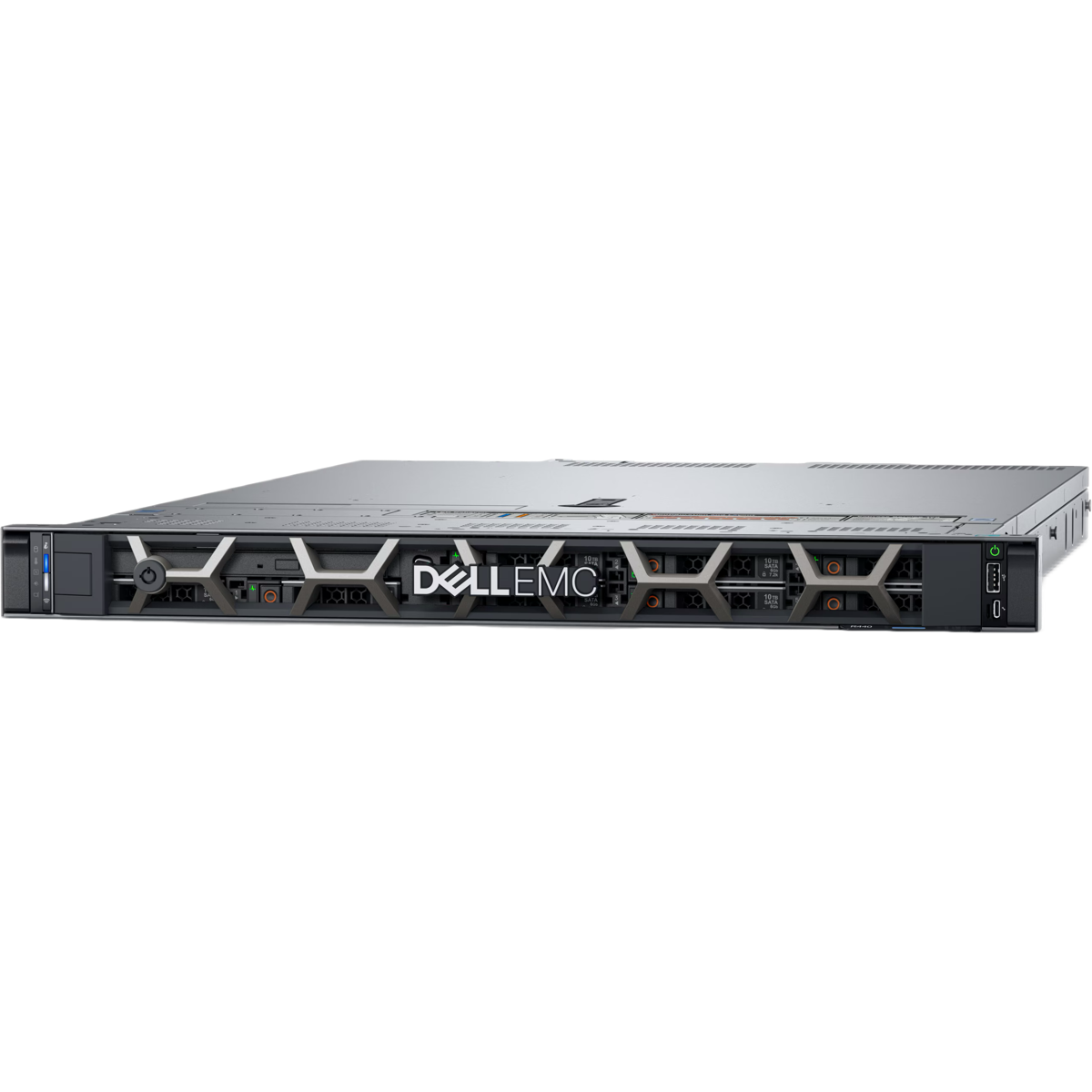

Dell PowerEdge R440 - 1U Dual-Socket Rack Server
The PowerEdge R440 is a compact 1U, two-socket rack server built for scale-out infrastructure where density and per-watt performance matter. It fits into edge deployments, colocation racks and clustered environments where space and power budgets are tight.
Built on Intel Xeon Scalable processors, the R440 offers up to two CPUs with up to 22 cores each, paired with 16 DDR4 DIMM slots supporting RDIMM or LRDIMM memory up to 1TB. Embedded iDRAC9 with Lifecycle Controller gives agent-free, at-server and remote management out of the box.
Storage is genuinely flexible for a 1U chassis: up to 10 x 2.5" SAS/SATA/SSD bays with room for 4 NVMe drives, or a 4 x 3.5" configuration for bulk capacity, plus internal M.2 boot drives that free up front bays entirely for data storage.
Every R440 we supply is configured to order, so you choose processor count, memory capacity, drive type and RAID controller to match the workload rather than paying for a fixed spec you don't need.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockAbout the Dell PowerEdge R440
The Dell PowerEdge R440 packs dual-socket Xeon Scalable performance and flexible 2.5" or 3.5" storage into a single rack unit, making it a natural fit for scale-out clusters, web-tier deployments and general virtualisation hosts where rack space is at a premium.
Configure to your workload
Use the configurator below to select processor count and core density, memory capacity across the 16 DDR4 slots, drive type and RAID controller, and network riser options. Every R440 is built to order from tested, refurbished components rather than shipped as a fixed spec.
Typical Use Cases
- Scale-out web and HPC clusters where 1U density and per-node cost matter
- Virtualisation hosts running VMware ESXi, Hyper-V or Proxmox
- Database servers benefiting from NVMe tiering alongside bulk SATA storage
- Edge and colocation deployments with limited rack space and power budget
- CI/CD build farms and containerised workloads needing many cores per rack unit
- File and application servers using 4 x 3.5" high-capacity drive configurations
- Development and test environments mirroring production Xeon Scalable hardware
Key Specifications
| Processor | |
|---|---|
| Processor Family | Intel Xeon Scalable |
| No of Processors | Up to two |
| Cores Per Processor | Up to 22 |
| Memory | |
| Memory Type | DDR4 RDIMM / LRDIMM |
| Memory Slots | 16 DDR4 DIMM slots |
| Maximum Speed | 2666MT/s |
| Maximum Capacity | 1TB |
| Storage Controllers | |
| Internal Controllers | PERC H330, H730p, H740p, HBA330 |
| Software RAID | S140 |
| Boot Storage Option | HWRAID 2 x M.2 SSDs 120GB, 240 GB |
| External Controller | PERC H840 |
| SAS Host Bus Adapters | 12 Gbps SAS HBA |
| Storage | |

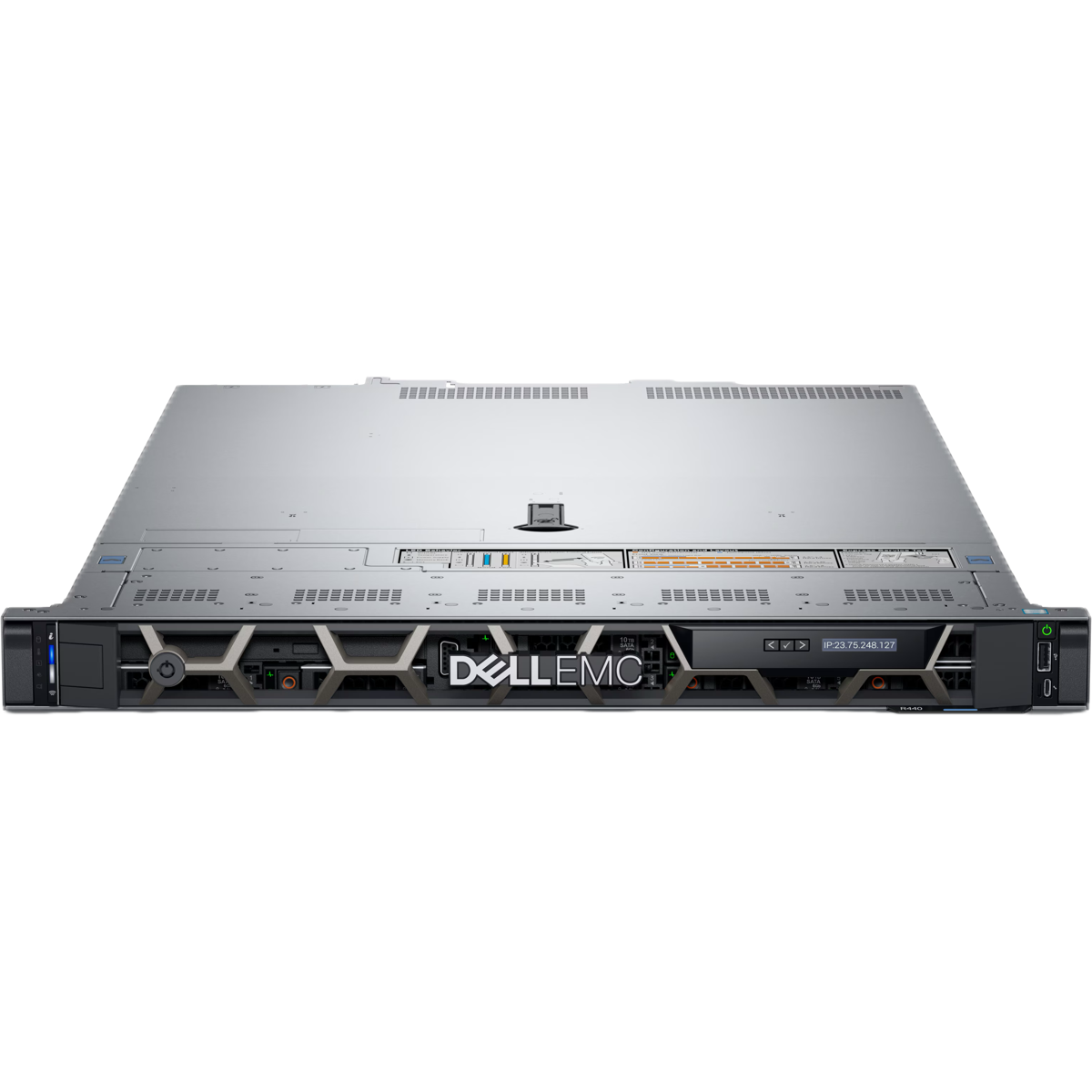

| Drive Bays 2.5 inch | Up to 10 x 2.5" SAS/SATA (HDD/SSD) with up to 4 NVMe SSD max 38.4TB |

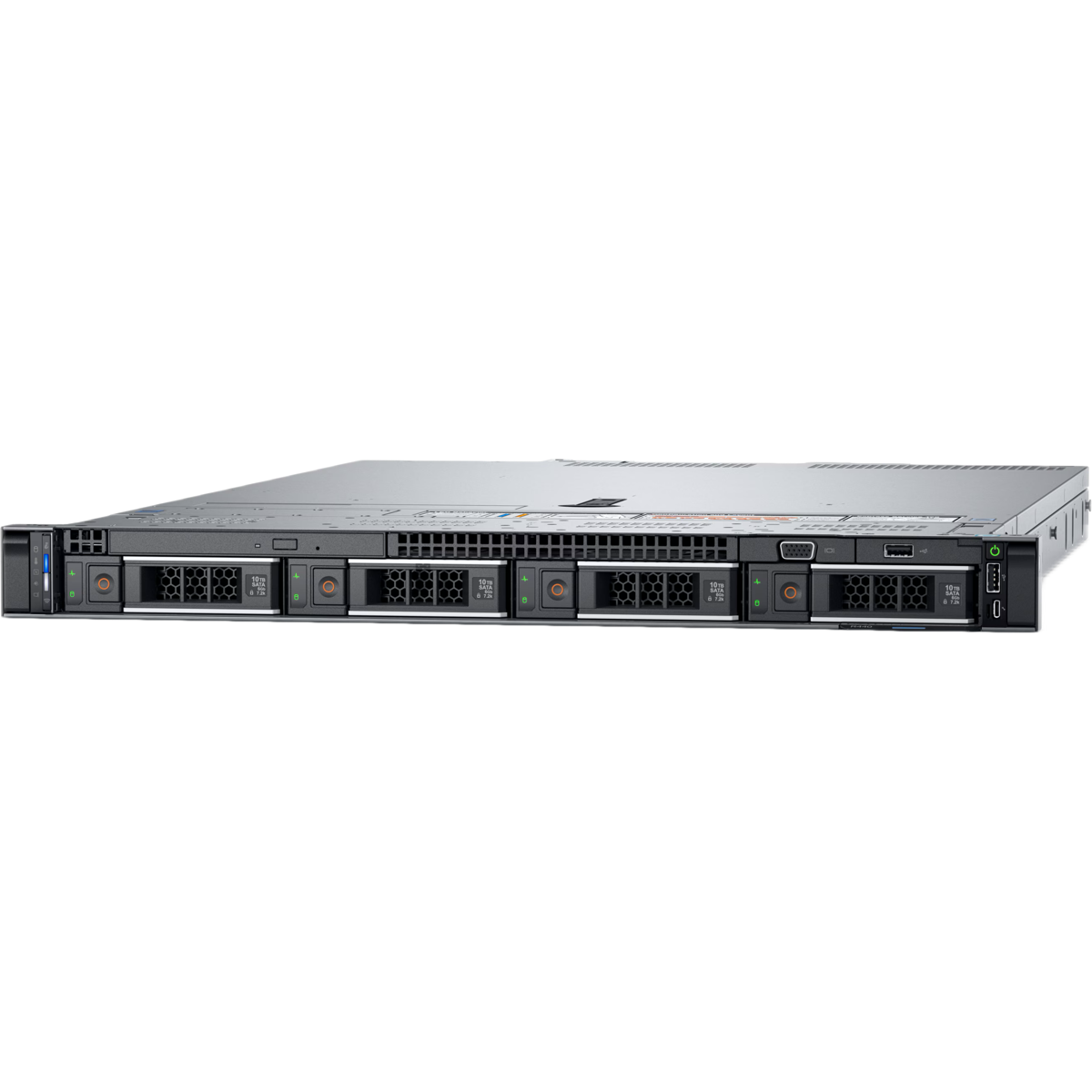

| Drive Bays 3.5 inch | Up to 4 x 3.5 SAS/SATA HDD max 56TB |
| Power | |
| Power Supply Options | Bronze 450W, Platinum 550W |
| Chassis | |
| Form Factor | Rack (1U) |
| Chassis Depth (2.5 inch HDD) | 728.23 mm Front Bezel to Rear PSU Handle |
| Chassis Depth (2.5 inch HDD) | 714.58 mm Front plate (no bezel) to Rear PSU Handle |
| Management | |
| Embedded Management | iDRAC9 with Lifecycle Controller |
| Security | |
| TPM | TPM 1.2/2.0 optional |
| Security Features | Cryptographically signed firmware, Silicon Root of Trust, Secure Boot, System Lockdown, System Erase |
| Networking | |
| Network Interface | 2 x 1GE LOM + (optional) LOM Riser 2 x 1GE or 2x 10GE SFP+ or 2 x 10GE BaseT |
| I/O Ports | |
| Front USB Ports | 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB |

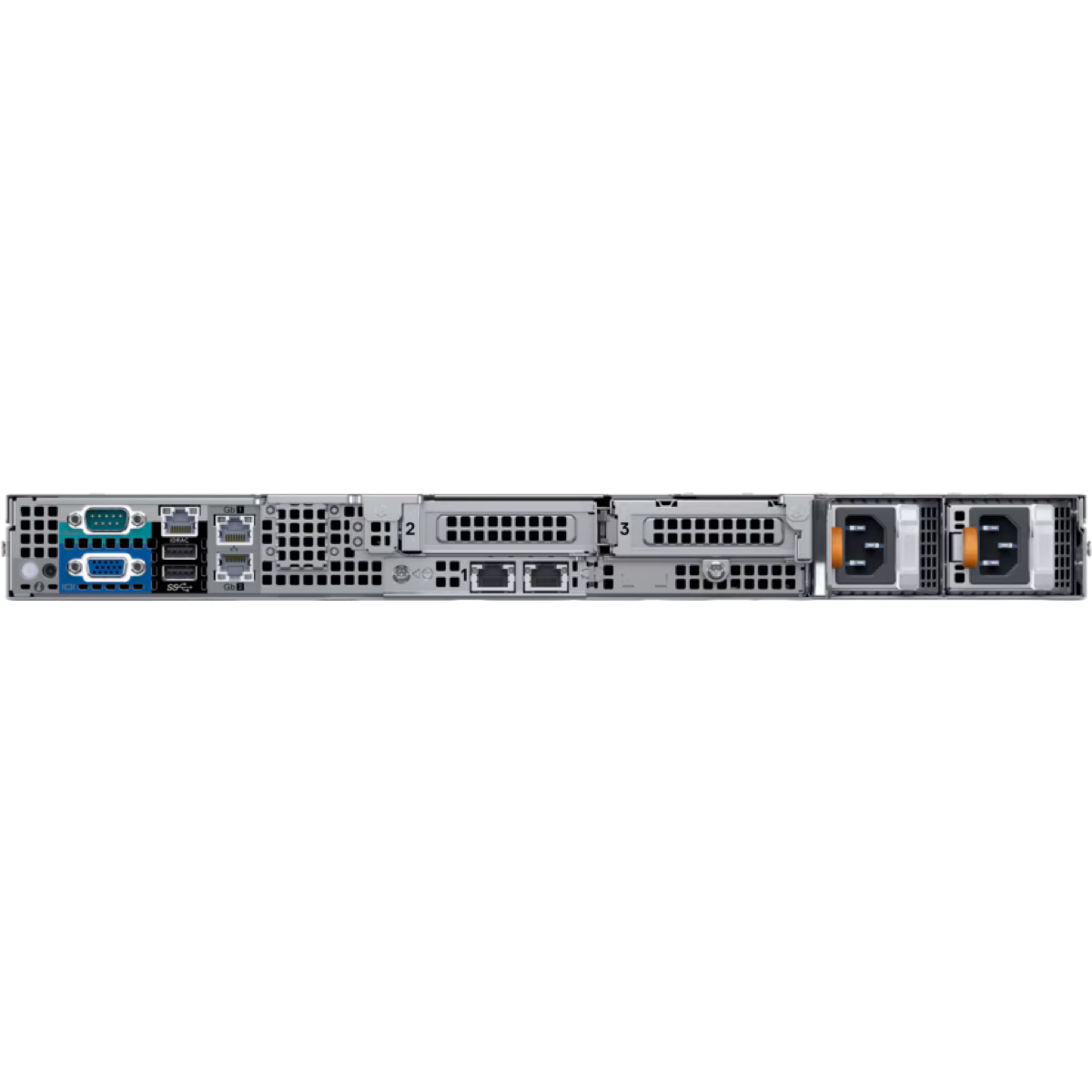

| Rear Ports | Video, serial, 2 x USB 3.0, dedicated iDRAC network port |
