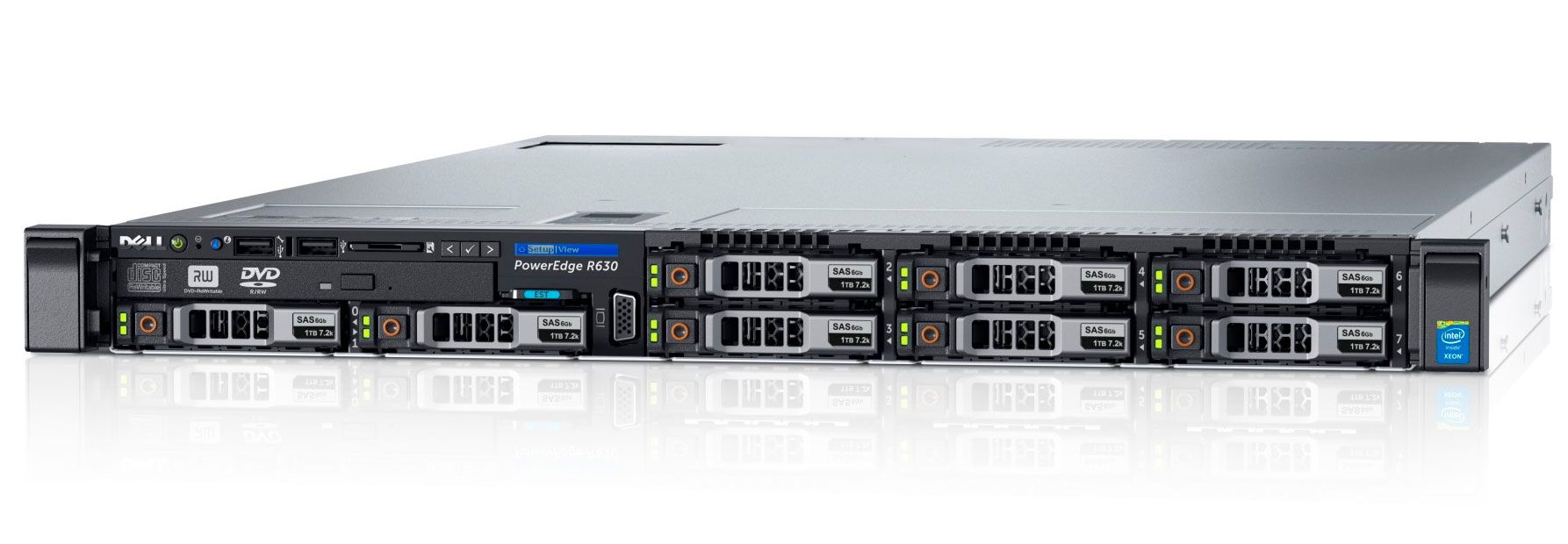

Dell PowerEdge R630 - Refurbished 1U Dual-Socket Rack Server
The R630 packs two-socket compute density into a single rack unit, a configuration Dell positioned as delivering performance previously reserved for 2U chassis. It's a compact, rack-efficient platform for environments where floor space and power budgets are as tight as the performance requirements.
Built around the Intel Xeon E5-2600 v4 family, the R630 supports processors with up to 22 cores apiece, paired with 24 DDR4 DIMM slots for up to 1.5TB of memory. That combination of core count and memory headroom made it one of Dell's most widely deployed 13th-generation platforms.
Storage flexibility is a defining feature: choose between up to 24 x 1.8" SSDs for an all-flash transactional build, up to 10 x 2.5" drives for a balanced virtualisation host, or add up to four NVMe PCIe Express Flash devices for latency-sensitive caching. PERC H730/H730P controllers and iDRAC8 with Lifecycle Controller round out the hardware.
Every R630 sold through our configurator is built to order — pick your processor pairing, memory capacity, drive type and RAID controller, and we assemble and test the exact specification you need.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockAbout the Dell PowerEdge R630
The PowerEdge R630 remains one of the most capable dual-socket 1U servers Dell has produced, combining up to 44 physical cores, 1.5TB of DDR4 memory and a genuinely flexible storage backplane in a single rack unit. Whether you need an all-flash transactional build or a dense virtualisation host, the underlying platform adapts to the job.
Use the configurator below to choose your processor pairing, memory capacity, drive type and RAID controller. We build each order to your exact specification from tested, refurbished components, so the server you receive matches the role you're putting it into rather than a fixed off-the-shelf profile.
Typical Use Cases
- Virtualisation hosts running VMware ESXi, Hyper-V or Proxmox clusters
- High-transaction OLTP databases using an all-flash 1.8" SSD backplane
- Consolidation targets replacing multiple older 2U servers to save rack space and power
- CRM and ERP application servers requiring dense, resource-rich compute
- Latency-sensitive workloads paired with NVMe PCIe Express Flash caching
- High-availability clusters using hot-plug redundant power and cooling
- Development and test environments needing configurable multi-socket compute
- Secondary or DR nodes mirroring existing R630 production estates
Key Specifications
| Chassis | |
|---|---|
| Form Factor | 1U rack server |
| Chassis Width | 48.23 cm (18.98 in) |
| Chassis Depth (3.5 inch HDD) | 75.51 cm (29.72 in) |
| Chassis Depth (2.5 inch HDD) | 70.05 cm (27.57 in) |
| Processor | |
| Processor Family | Intel Xeon E5-2600 v4 |
| Processor Count | 2 |
| Cores Per Processor | 4, 6, 8, 10, 12, 16, 18, 22 |
| Cache | 2.5MB per core |
| Chipset | Intel C610 series |
| Memory | |
| Memory Type | DDR4 |
| Memory Speed | Up to 2400MT/s |
| Memory Slots | 24 DIMM slots |
| Maximum Memory | 1.5TB |
| Expansion Slots | |
| PCIe Configuration | Up to 3 x PCIe 3.0 slots plus dedicated PERC slot |
| Storage Controllers | |
| Internal controllers | PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P |
| SAS Host Bus Adapters | PERC H830, 12Gbps SAS HBA |
| Storage | |
| Drive Bays 1.8 inch | Up to 24 x 1.8" SATA SSD |
| Drive Bays 2.5 inch | Up to 10 x 2.5" HDD or SSD; Up to 8 x 2.5" HDD or SSD |
| Drive Bays 3.5 inch Max Capacity | 24 x 1.8" SSD – up to 23TB; 10 x 2.5" – up to 18TB; 8 x 2.5" – up to 14TB |
| NVMe PCIe | Up to 4 NVMe PCIe |
| Networking | |
| Network Interface | 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb |
| Power | |
| Power Supply Options | Titanium efficiency 750W AC; 1100W DC; Platinum efficiency 495W, 750W, 1100W |
| Management | |
| Embedded Management | iDRAC8 with Lifecycle Controller, iDRAC8 Express, iDRAC8 Enterprise, iDRAC Quick Sync, IPMI 2.0 compliant |
