Lenovo ThinkSystem SR250 1U Rack Server

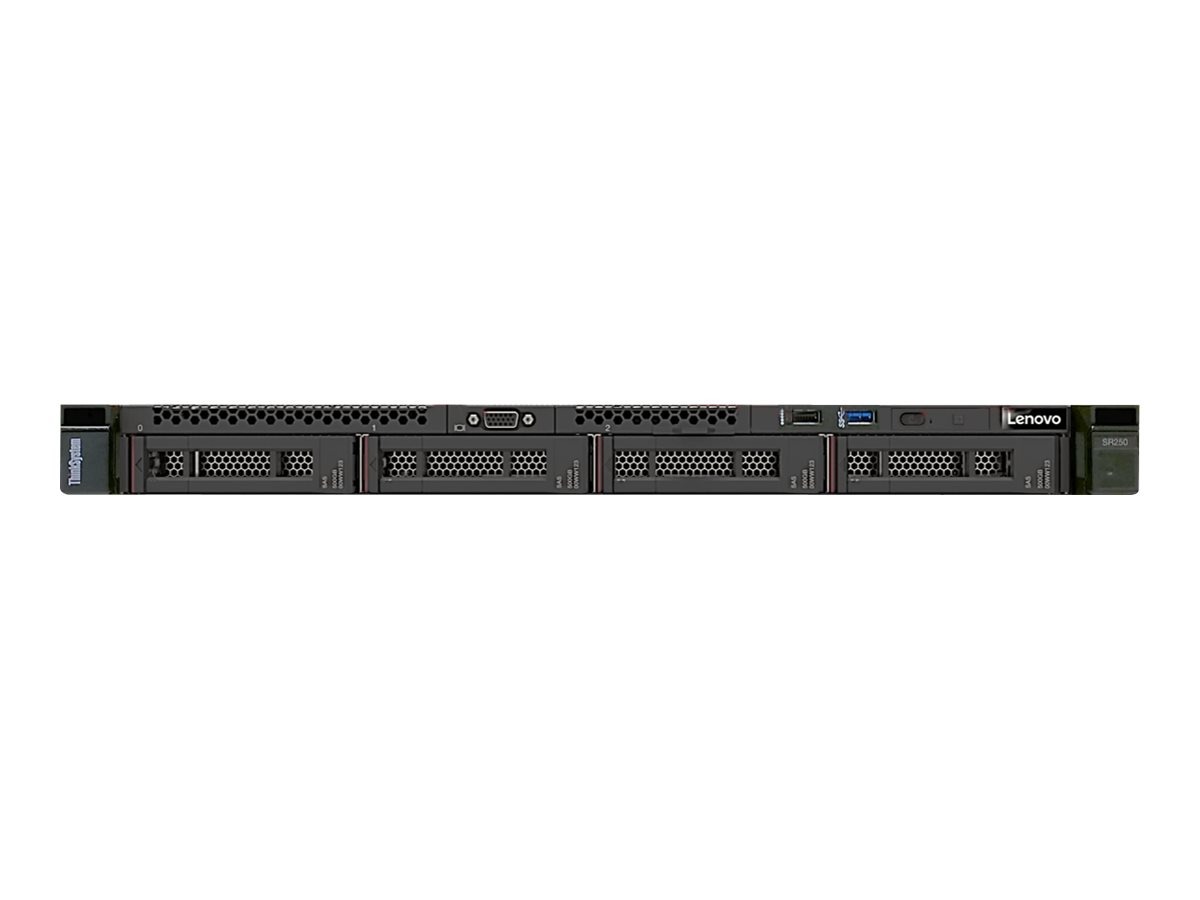

The SR250 is Lenovo's entry single-socket 1U rack server, built around a compact 434.4mm-wide chassis available in two bay configurations: four simple- or hot-swap 3.5-inch drives, or up to ten hot-swap 2.5-inch bays including two NVMe-capable slots.
Based on the 7Y51/7Y52 platform, it takes a single Intel processor from the Core, Pentium, Celeron or Xeon E range rather than the Scalable family found in larger ThinkSystem servers, keeping cost and power draw down for smaller deployments.
Four DDR4 UDIMM slots support up to 128GB of ECC memory at 2666MT/s, and dual Gigabit Ethernet plus a dedicated XClarity Controller port give you onboard remote management without extra cabling. Two PCIe slots are available for additional networking, storage controllers or a GPU where power and clearance allow.
Configure the SR250 to order through Compuwyze with your choice of processor, memory capacity, drive bay layout and storage controller, so the system you receive matches the workload rather than a generic spec sheet.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
Normally available from . These chassis are out of stock at the moment:
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockAbout the Lenovo SR250
The Lenovo ThinkSystem SR250 is a single-socket 1U rack server built for branch office and departmental workloads where a dual-socket platform isn't needed. Choose between a four-bay 3.5-inch chassis or a ten-bay 2.5-inch hot-swap chassis with NVMe support, then configure the processor, memory and storage controller below to match your deployment.
Every SR250 is configured to order against the component ranges available for this model, so the specification you build is the specification you receive.
Typical Use Cases
- Branch office file, print and directory services on a single low-power rack unit
- Edge compute nodes for remote retail or industrial sites needing centralised XClarity management
- DNS, DHCP and authentication services for small to mid-sized offices
- Light virtualisation hosts running a handful of VMs under Hyper-V or VMware ESXi
- NVMe-accelerated storage tier for latency-sensitive small databases
- Standardised SMB server refresh deployments needing consistent, low-cost hardware
- Development and test rigs where a full dual-socket server would sit underused
Key Specifications
| Chassis | |
|---|---|
| Form Factor | 1U Rack |
| Height | 43.0 mm (1.7 inches) |
| Width | 434.4 mm (17.1 inches) |
| Depth | 497.8 mm (19.6 inches) |
| Weight (maximum) | 12.3 kg (27.1 lbs) |
| Processor | |
| No of Processors | One |
| Processor Type | Intel Core, Pentium, Celeron or Xeon E processor family |
| Memory | |
| Maximum Memory Capacity | 128 GB |
| RAM Type | PC4-21300, 2666 MT/s, ECC, DDR4 UDIMM |
| RAM Slots | Four DIMM slots |
| Storage | |
| Drive Bay Configurations | 2.5-inch: up to four hot-swap SAS/SATA bays, up to eight hot-swap SAS/SATA bays, up to ten hot-swap SAS/SATA bays with two NVMe bays; 3.5-inch: up to four simple-swap SAS/SATA bays, up to four hot-swap SAS/SATA bays |
| Expansion Slots | |
| PCIe Slots | Two PCIe slots |
| Networking | |
| Network Interfaces | Two Ethernet connectors |
