Lenovo SR650 2U Server - Configure to Order
SR650
Lenovo

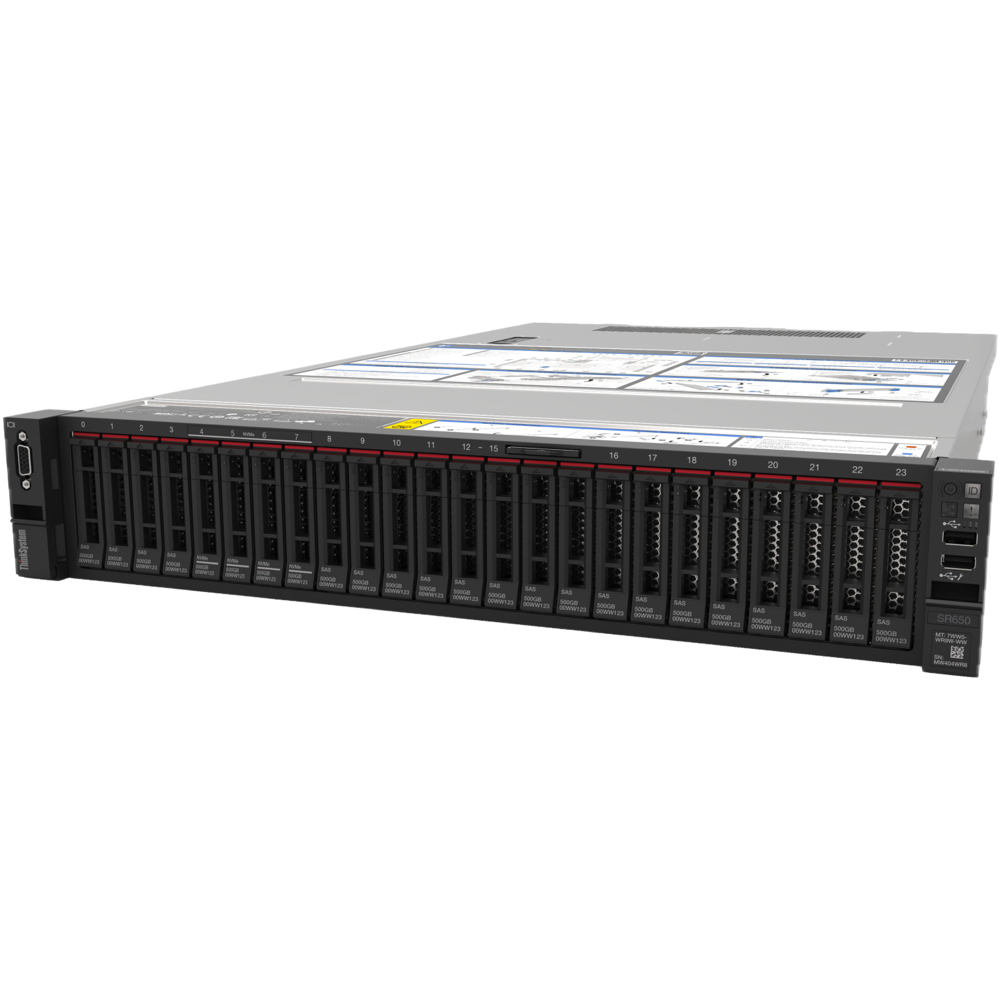

Lenovo ThinkSystem SR650 - 2U Dual-Socket Rack Server
The SR650 is Lenovo's mainstream 2U rack platform, built around second-generation Intel Xeon Platinum processors and a drive bay layout flexible enough to run as a dense storage node or a high-density compute host.
With two CPU sockets supporting chips up to 205W and 24 DIMM slots addressable up to 7.5TB using Optane DC Persistent Memory, this generation was pitched squarely at virtualisation clusters, database tiers and mixed workloads that needed headroom without moving to 4U.
Storage configurations range from 14x 3.5in bays through to 24x 2.5in NVMe-capable bays, paired with up to 7 PCIe 3.0 expansion slots and hardware RAID controllers offering up to 24 ports with flash cache backup.
Each SR650 is configured to order at Compuwyze, so you choose the processor pairing, memory capacity, drive bay layout and RAID controller to match the workload rather than buying a fixed spec off the shelf.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
Normally available from . These chassis are out of stock at the moment:
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockAbout the Lenovo SR650
The Lenovo ThinkSystem SR650 pairs dual second-generation Intel Xeon Platinum processors with one of the most flexible drive bay layouts in its class, making it equally suited to virtualisation clusters, database hosts and storage-dense builds within a standard 2U footprint.
Configure to your workload
Choose your processor pairing, memory capacity and drive bay configuration below. Every SR650 is built to order from tested components and covered by our 3 year return-to-base warranty.
Typical Use Cases
- Virtualisation hosts running VMware ESXi, Hyper-V or Proxmox
- SQL Server and Oracle database servers needing large memory footprints
- Software-defined storage nodes using Ceph or Storage Spaces Direct with all-NVMe backplanes
- General-purpose application and file servers requiring hot-swap drive, fan and PSU redundancy
- High-density VDI hosts consolidating large numbers of desktop sessions
- Media and file storage builds using 14x 3.5in bay configurations for bulk capacity
- Backup targets and secondary storage tiers with mixed SAS/SATA/NVMe AnyBay bays
Key Specifications
| Chassis | |
|---|---|
| Form Factor | 2U rack server |
| Processor | |
| No of Processors | Up to 2 |
| Processor Type | second-generation Intel® Xeon® Platinum processors, up to 205W |
| Memory | |
| RAM Type | TruDDR4 |
| RAM Slots | 24x DIMM slots |
| Memory Speed | 2666MHz / 2933MHz |
| Maximum Memory Capacity | Up to 7.5 TB using 128GB DIMMs and Intel® Optane™ DC Persistent Memory |
| Expansion Slots | |
| PCIe Slots | Up to 7x PCIe 3.0 via multiple riser options including 1x dedicated PCIe slot for RAID adapter |
| Storage | |
| Drive Bay Configurations | Up to 14x 3.5" or up to 24x 2.5" hot-swap bays (up to 12 AnyBay bays or up to 24 NVMe bays); up to 2x M.2 boot drives (RAID 1) |
| Storage Controllers | |
| Storage Controller Options | HW RAID (up to 24 ports) with flash cache; up to 16-port HBAs |
| Security | |
| TPM | TPM 1.2/2.0 |
| Security Features | PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port |
| Networking | |
| Network Interfaces | 2/4-port 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1x dedicated 1GbE management port |
| Power | |
| Power Supply Quantity | 2x hot swap/redundant |
| Power Supply Options | 550W/750W/1100W/1600W 80 PLUS Platinum; or 750W 80 PLUS Titanium; or -48V DC 80 PLUS Platinum |
| Management | |
| Management Features | XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management |
| Operating Systems Supported | |
| Operating Systems Supported | Microsoft, Red Hat, SUSE, VMware |
