HPE DL385 Gen10 Plus 2U Server | Configure to Order
ProLiant DL385 Gen10 Plus
HPE

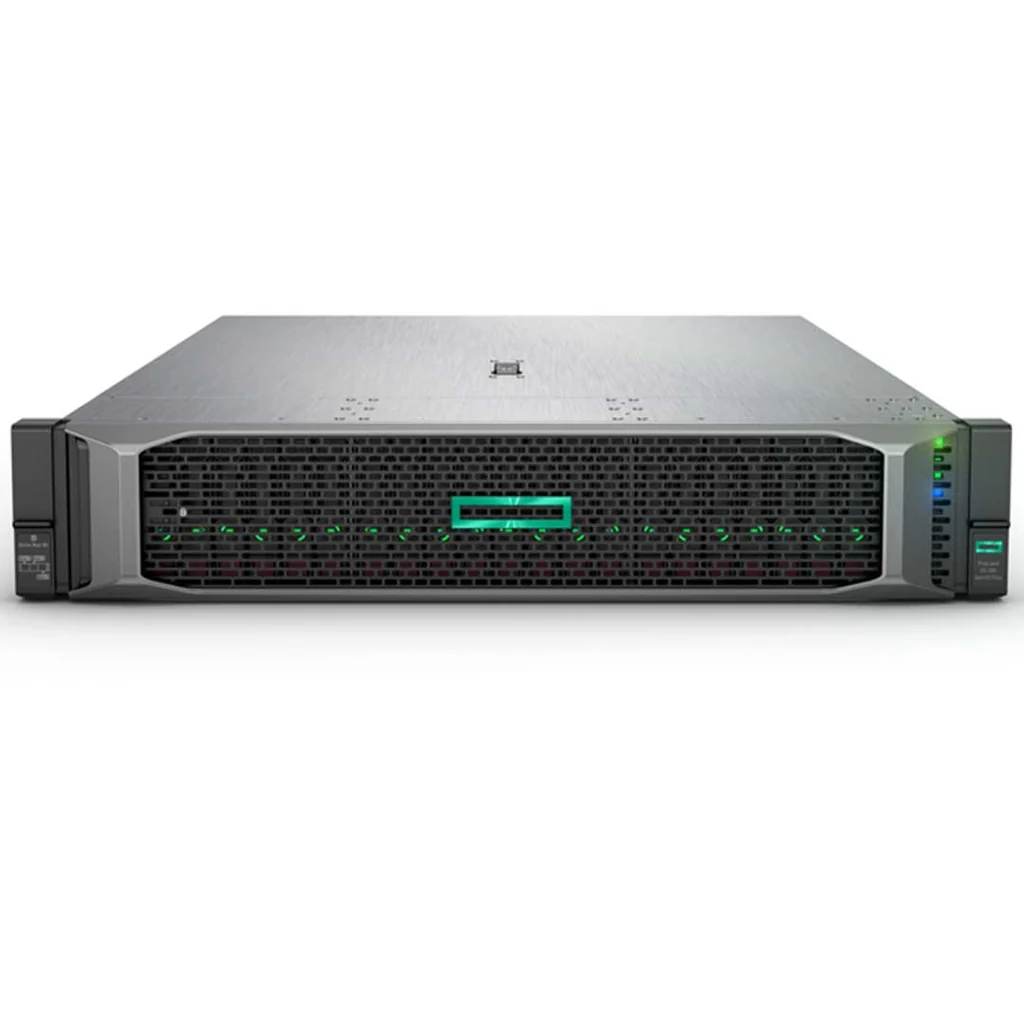

HPE ProLiant DL385 Gen10 Plus 2U Rack Server
The DL385 Gen10 Plus is HPE's dense, dual-socket AMD platform built for hybrid cloud, virtualisation and software-defined storage. It packs a flexible 2U chassis around the 2nd Generation AMD EPYC 7000 Series processor, which doubles core density over the previous generation.
With up to 128 cores across two sockets, 32 DIMM slots supporting up to 4TB of DDR4 running at speeds up to 3200 MT/s, and PCIe Gen4 expansion throughout, this generation shifts the balance firmly towards memory-bound and I/O-hungry workloads.
Storage flexibility is a strong point: configure up to 28 SFF, 20 LFF or 16 NVMe drives behind HPE Smart Array controllers that can run in SAS RAID or HBA pass-through mode, alongside a choice of OCP 3.0 or PCIe standup networking adapters.
iLO 5 with Silicon Root of Trust and the AMD Secure Processor gives the platform hardware-rooted security by default, while support for HPE OneView and iLO RESTful API extensions makes it straightforward to fold into an automated infrastructure.
Every unit we list is configured to order, so you choose your processor pairing, memory footprint, drive layout and network adapter to match the workload rather than paying for a fixed factory spec.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockAbout the HPE ProLiant DL385 Gen10 Plus
The HPE ProLiant DL385 Gen10 Plus pairs 2nd Generation AMD EPYC processors with a genuinely flexible 2U chassis, giving you up to 128 cores, 4TB of DDR4 memory and PCIe Gen4 expansion in a single dual-socket platform. It's built for virtualisation, software-defined storage and HPC workloads where core density and memory bandwidth both matter.
Choose your processor pairing, memory footprint and drive configuration below and we'll build the server to that exact specification. Every configuration draws from the same flexible drive bay and networking options detailed above, so you can match the platform to SFF, LFF or NVMe storage and OCP 3.0 or PCIe networking as your workload requires.
Typical Use Cases
- Virtualisation hosts running VMware ESXi, Hyper-V or Proxmox
- Software-defined storage nodes using Smart Array controllers in HBA mode for Ceph or Storage Spaces Direct
- High-performance compute clusters that benefit from high core counts and PCIe Gen4 bandwidth
- In-memory databases and analytics platforms needing large DDR4 capacity at 3200 MT/s
- Consolidation of multiple older single-socket servers into a single dense 2U platform
- VDI hosts requiring both high core density and substantial memory bandwidth
- Hybrid cloud environments managed through HPE OneView or Redfish-based orchestration
- Edge and branch compute where iLO 5 remote management is needed without on-site IT staff
Key Specifications
| Processor | |
|---|---|
| Processor Type | AMD |
| Processor Family | 2nd Generation AMD EPYC™ 7000 Series |
| Number of Processors | Up to 2 |
| Cores Per Processor | 64 or 48 or 32 or 24 or 16 or 8, per processor, depending on model |
| Processor Cache | 256 MB or 192 MB or 128 MB L3, per processor, depending on model |
| Maximum Speed | 3.4 GHz, maximum depending on processor |
| Memory | |
| Maximum Capacity (RDIMM) | 4.0 TB with 128 GB DDR4 |
| Memory Slots | 32 |
| Memory Type | HPE DDR4 SmartMemory |
| Memory Protection Features | ECC |
| Maximum Speed | 3200 MT/s |
| Storage | |
| Drive Support | 8 or 12 LFF SAS/SATA/SSD with 4 LFF rear drive optional and 2 SFF rear drive optional; 8 or 24 SFF SAS/SATA/SSD with 4 SFF rear drive optional; 16 SFF NVMe Front bay |
| Storage Controllers | |
| Storage Controller | 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a (depending on model) |
| Expansion Slots | |
| PCIe Expansion Slots | 8 maximum |
| Networking | |
| Network Controller | Choice of optional OCP plus standup, depending on model |
| Power | |
| Power Supply Type | 2 Flexible Slot power supplies, maximum depending on model |
| Chassis | |
| Form Factor | 8.73 x 44.54 x 74.9 cm |
| Weight (LFF) | 15.1 kg |
| Management | |
| Infrastructure Management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) |
