Dell PowerEdge R730xd 2U Server - Configure to Order
PowerEdge R730xd
Dell

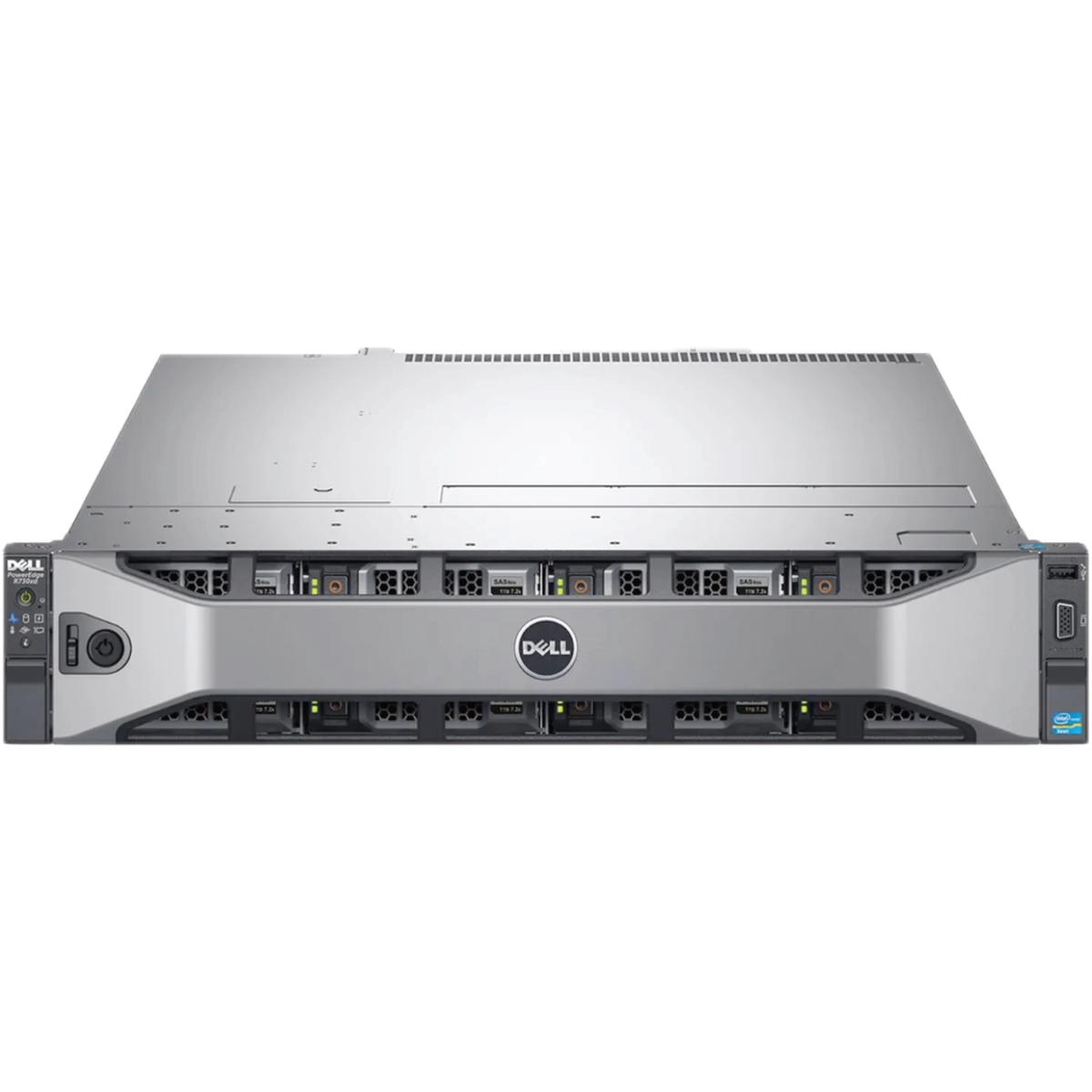

Dell PowerEdge R730xd 2U Rack Server, Configured to Order
The R730xd is a dual-socket 2U rack server built around Intel Xeon E5-2600 v3 processors and 24 DDR4 DIMM slots, giving it the compute headroom to sit anywhere from a departmental file server to a demanding virtualisation host.
What sets this generation apart is its storage flexibility: six distinct drive-bay configurations let you mix 1.8-inch NVMe SSDs with high-capacity 3.5-inch SAS or SATA drives in the same chassis, so tiered storage and hybrid workloads are handled without extra hardware.
With up to six PCIe 3.0 slots, dual PERC controller support and drive counts as high as 26 in the all-2.5-inch configuration, the R730xd copes comfortably with database workloads, Exchange or SharePoint, and scale-out storage roles alike.
Order yours configured to your workload: choose processor, memory, drive bay layout, RAID controller and network daughter card to match the job rather than paying for capacity you won't use.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockAbout the Dell PowerEdge R730xd
The PowerEdge R730xd pairs dual Intel Xeon E5-2600 v3 processors with 24 DDR4 DIMM slots and one of six possible drive-bay layouts, making it as comfortable running dense virtual machine estates as it is acting as a high-capacity file or database server.
Configure the model below to choose your processor pairing, memory capacity, drive bays and RAID controller. Every build is tested and configured to order, so the specification you see reflects what will actually ship.
Typical Use Cases
- Virtualisation hosts running VMware ESXi or Hyper-V clusters
- High-IOPS database servers using 24-bay dual-PERC storage configurations
- Microsoft Exchange and SharePoint servers for unified communications workloads
- Bulk file and archive storage using the 16 x 3.5" high-capacity drive layout
- Hadoop and big data nodes needing large scale-out storage per chassis
- Tiered storage platforms combining SSD caching with SAS or nearline SAS capacity
- Colocation and hosting infrastructure requiring dense, hot-swappable storage
- Development and test environments needing a resource-rich, expandable rack server
Key Specifications
| Chassis | |
|---|---|
| Form Factor | 2U rack |
| Chassis Width | 44.40 cm (17.49 in.) |
| Chassis Depth (3.5 inch HDD) | 68.40 cm (26.92 in.) |
| Processor | |
| Processor Family | Intel® Xeon® processor E5-2600 v3 product family |
| No of Processors | 2 |
| Cores Per Processor | 4, 6, 8, 10, 12, 14, 16, 18 |
| Cache | 2.5MB per core |
| Chipset | |
| Chipset | Intel C610 series chipset |
| Memory | |
| Memory Type | DDR4 |
| Memory Speed | up to 2133MT/s |
| Memory Slots | 24 DIMM slots |
| Maximum Memory | Up to 768GB |
| Expansion Slots | |
| PCIe Configuration | Up to 6 x PCIe 3.0 slots plus dedicated RAID card slot |
| Storage Controllers | |
| Internal controllers | PERC H330, PERC H730, PERC H730P |
| SAS Host Bus Adapters | PERC H830 (RAID); 12Gbps SAS HBA (non-RAID) |
| Storage | |
| Drive Bays 3.5 inch | Up to 16 x 3.5"; Up to 8 x 3.5"; Up to 12 x 3.5" |
| Drive Bays 2.5 inch | 2 x 2.5"; 26 x 2.5" |
| Drive Bays 1.8 inch | Up to 18 x 1.8" |
| NVMe PCIe | Up to 4 Express Flash NVMe PCIe SSDs |
| Drive Bays 3.5 inch Max Capacity | Up to 99.6TB with 12 x 3.5 6TB NL SAS HDD or SSD +4 x 3.5 6TB SAS + 2 x 2.5 1.8TB SAS HDD or SSD |
| Power | |
| Power Supply Options | Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W AC power supply |
| Networking | |
| Network Interface | 4 x 1GbE, 2x10+2GbE, 4 x 10GbE NDC |
| Management | |
| Embedded Management | iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) |
| Security | |
| Security Features | ECC memory, hot-plug hard drives, hot-plug redundant cooling, hot-plug redundant power, internal dual SD module, single device data correction (SDDC), spare rank |
