The 2.5in small form factor bay is standard in most rack servers built over the last decade, and SATA is the most economical way to fill one. A 2.5in SATA hard drive and a 2.5in SATA SSD use the same connector and fit the same bays, so the decision comes down to workload, write endurance and matching what is already in your array. The notes below are here to help you make that call before you add anything to the basket.
At a glance
Typical deployments
Most poor SATA purchases come from choosing on capacity alone. The right drive depends on how often it is written to, how many users hit it at once, and whether it has to sit alongside drives that are already running.
Boot and operating system mirrors
Two small SSDs in a RAID 1 mirror is the usual answer. Capacity barely matters and write load is modest, so a pair of 400GB or 480GB SATA SSDs is plenty for a hypervisor or Windows Server install, and patch reboots finish far sooner than on spinning disk. A hardware controller or the onboard mirror handles redundancy; our guide to choosing and configuring RAID controllers covers the options.
Virtualisation datastores

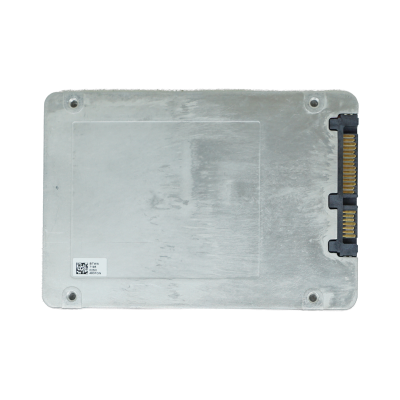

Put dozens of virtual machines on one datastore and every workload becomes random I/O, which is exactly where hard drives struggle. Prioritise consistent latency and endurance over headline sequential figures, and pick an enterprise drive such as the Intel DC S3610 400GB (65WJJ) over a client SSD. Look for power-loss protection so in-flight writes survive an outage, and keep every drive in the array identical.
Databases and logging
Transaction logs, tempdb and busy message queues write constantly, so endurance matters more than raw size. Work out the daily write volume first and the data set second. A mixed-use drive such as the Micron 5200 MAX 480GB suits logs and hot tables, while colder data can sit on cheaper capacity if the budget is tight.
Backup targets and file archives

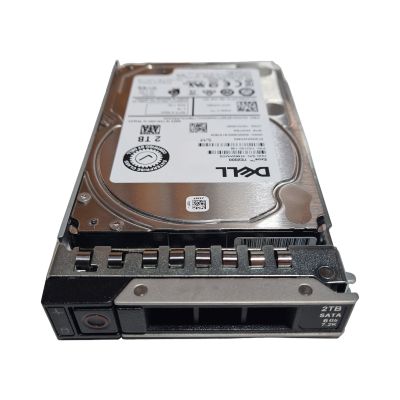

Cost per terabyte wins here. A Seagate Exos 7E2000 2TB 7.2K drive gives you capacity at a fraction of SSD pricing, and an SFF chassis fits more spindles per rack unit, which helps throughput. With larger drives, choose RAID 6 or RAID 10 over RAID 5: a second failure during a long rebuild is the risk to plan for.
Like-for-like replacements
When a drive fails in a running array, match the type, capacity and rotational speed of the surviving members, and ideally the vendor part number as well. A Dell-branded disk such as the Constellation.2 500GB (609Y5) carries firmware that PowerEdge controllers recognise. A larger replacement will usually rebuild, but the extra space goes unused until every member is upgraded.
Workstations and test labs
For a developer workstation, a lab hypervisor or a scratch volume, a client SSD such as the Samsung 860 EVO 2TB is a sensible, cheaper choice with plenty of room. It is not built for the sustained writes of a production server, and our comparison of enterprise and consumer SSDs explains where that line sits.
Why buy from Compuwyze
- A 12-month return-to-base warranty on drives and other simple items, explained in full on our warranty terms page.
- We aim to ship drive orders placed before 2pm on the same day.
- UK delivery is normally next working day once your order has shipped.
- Free UK delivery on orders over £50, with bulk drive orders packed in boxes or on pallets.
- International delivery through FedEx economy or priority services, usually within 2 to 5 days.
- Returns accepted within 30 days, with return shipping paid by the customer.
Frequently asked questions
Will a SATA drive work in a server with SAS bays?
In almost every case, yes. SAS controllers and backplanes accept SATA drives, which is why SATA is a common way to cut storage costs in servers designed for SAS. SATA drives are single-port and run at 6Gb/s, so keep them in separate arrays from SAS drives rather than mixing the two. Our SAS vs SATA vs NVMe guide sets out the trade-offs in more detail.
Should I choose a 2.5in SATA hard drive or a SATA SSD?
Choose a hard drive when capacity per pound counts most: backups, file shares and archives. Choose an SSD for boot drives, virtual machines and databases, where random read and write performance matters far more than size. Plenty of servers run both, with an SSD mirror for the operating system and hard drives for bulk data.
Do Dell and HPE servers need vendor-branded drives?
Not always, but it helps. Vendor-branded drives carry firmware that the server's RAID controller and management tools recognise, so health reporting and firmware updates behave as expected. Generic drives usually work, though some controllers may flag them as non-certified. When replacing a drive in an existing array, matching the vendor part number is the safest route.
Will a 2.5-inch server drive fit in a laptop?
Check the thickness first. Many laptops take 7mm drives, and some enterprise 2.5in drives, higher-capacity hard drives in particular, are thicker than that. Server drives are also tuned for continuous operation rather than battery life, so they make more sense in a desktop, workstation or external enclosure.
Can I search for a drive by part number?
Yes. Search the manufacturer model, such as ST2000NX0253 or THNSF81D60CSE, or the OEM number from the drive label or your server's parts list, such as 8DN1Y or DMF5Y. If the exact number isn't listed, compare interface, capacity, rotational speed or endurance class, and form factor to find a suitable equivalent.
Can I have drives fitted into a new server?
If you are buying a complete machine, the build-to-order server configurator lets you specify drives alongside processors and memory, so the server arrives assembled to your specification rather than as a box of parts.
