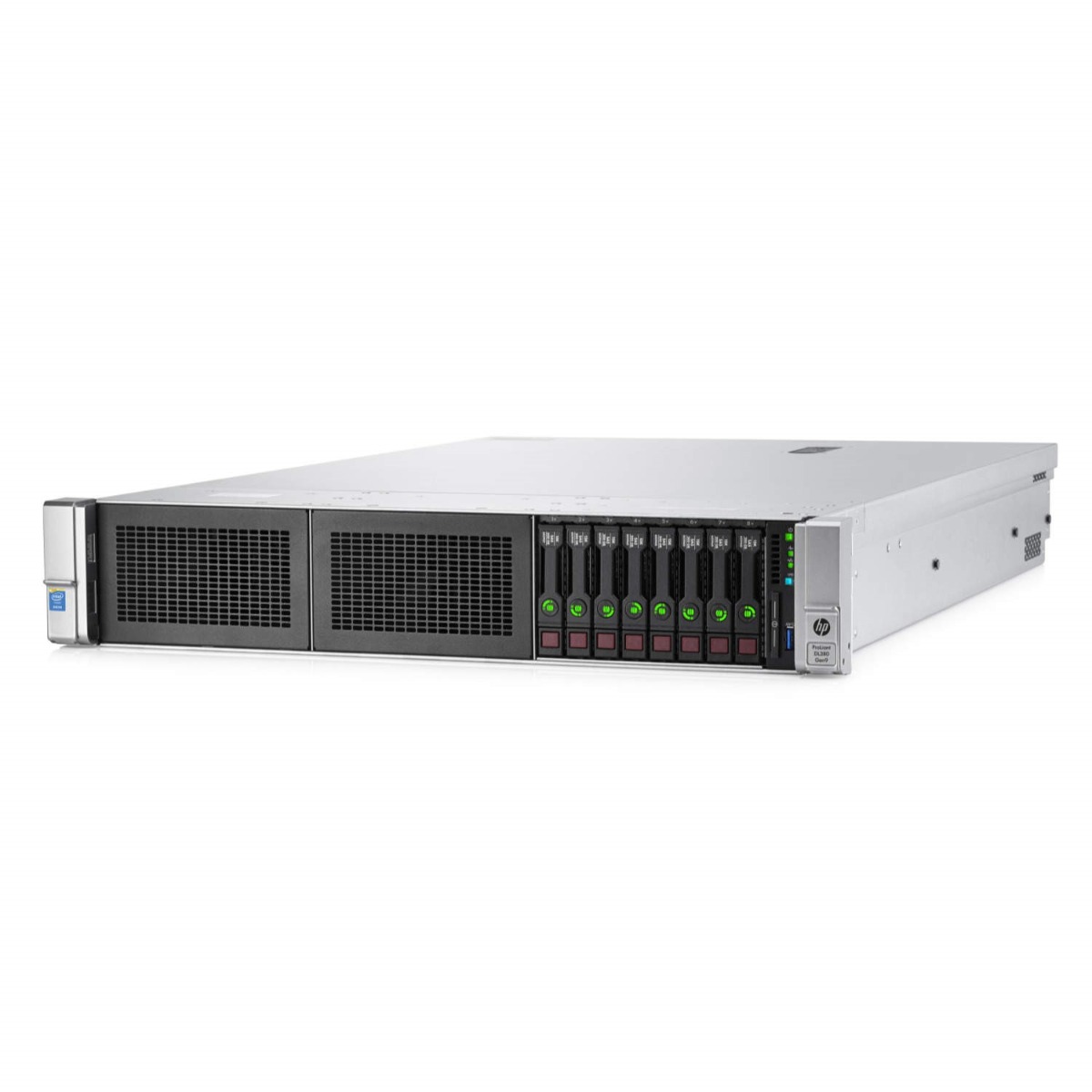

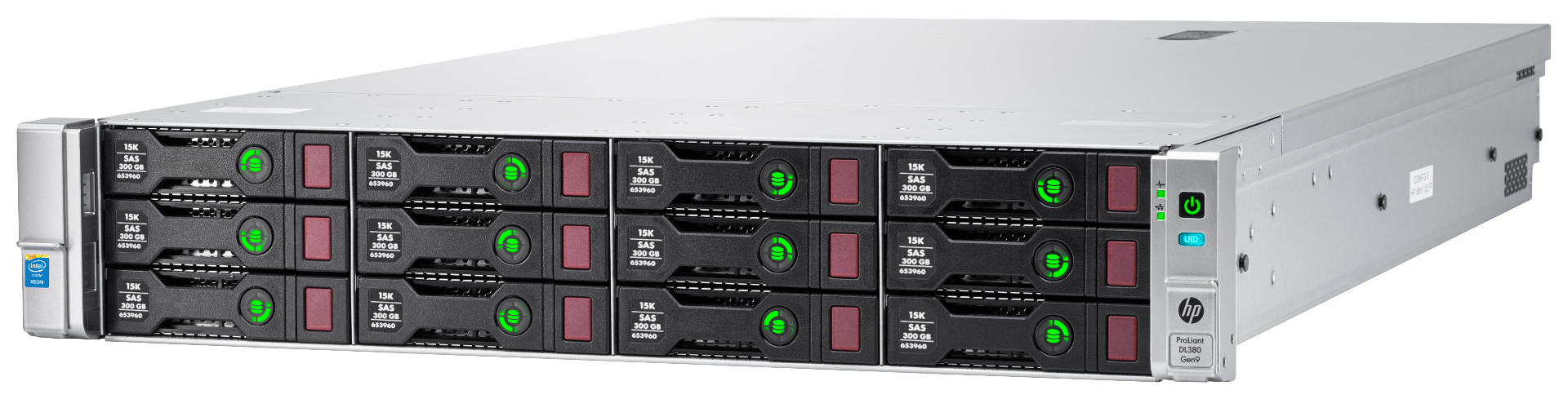

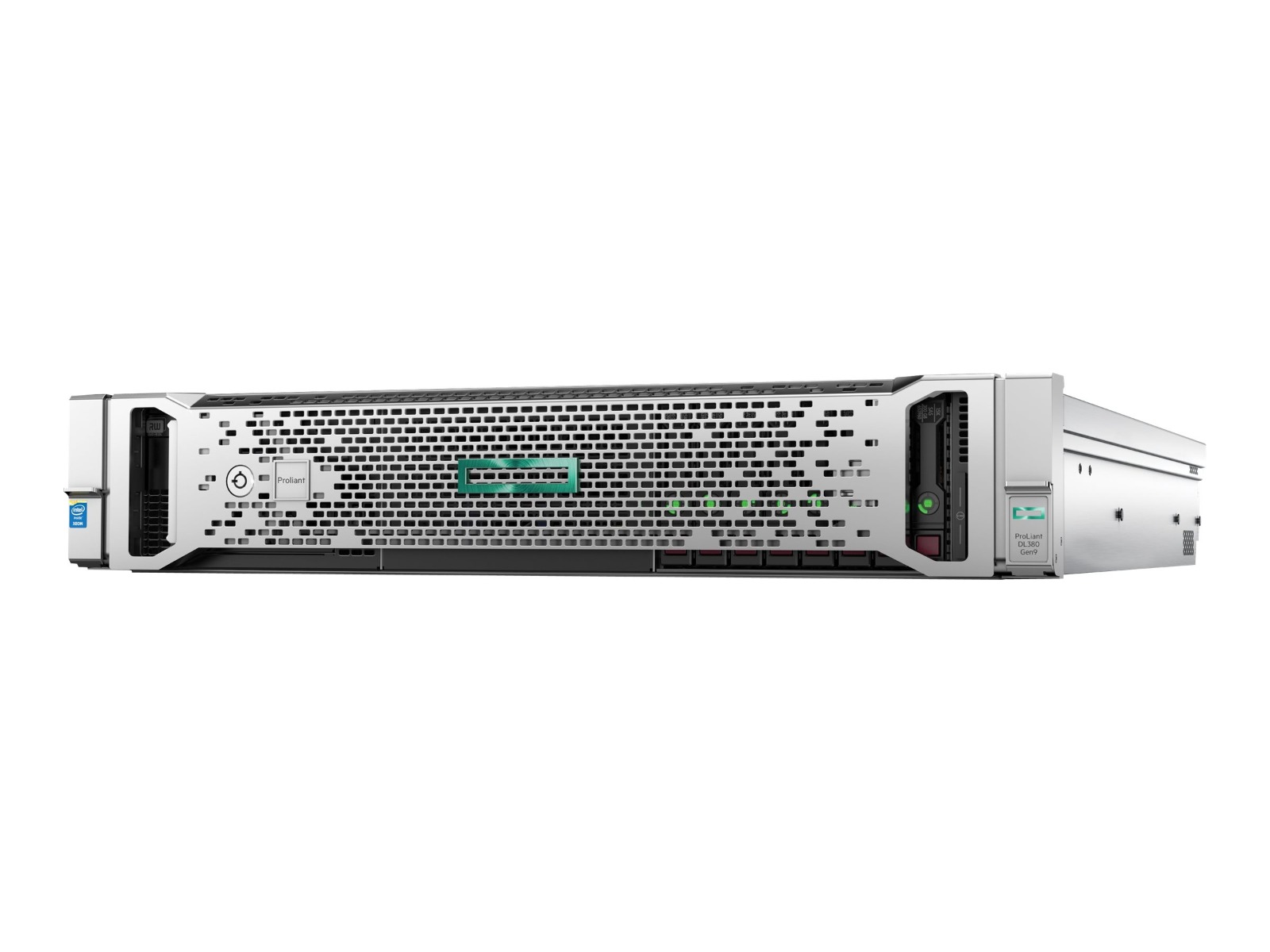

HPE ProLiant DL380 Gen9 - Refurbished 2U Rack Server
The DL380 Gen9 is HPE's dual-socket 2U workhorse, built around a redesigned chassis with Universal Media Bay options spanning 8 to 24 SFF or 4 to 12 LFF drives, plus rear and NVMe bays for extra expansion without eating into front-panel capacity.
This generation moved to Intel Xeon E5-2600 v3 and v4 processors, up to 22 cores per socket, alongside HPE DDR4 SmartMemory scaling to 3.0TB across 24 DIMM slots - a genuine step up in both compute density and memory bandwidth over the previous generation.
Underneath sits 12Gb/s SAS connectivity, flexible embedded and FlexibleLOM networking from 1GbE through to 40GbE, and support for single- or double-wide GPUs where workloads call for acceleration. Embedded HPE iLO handles out-of-band management and provisioning from day one.
Every DL380 Gen9 we list is configured to order: choose your processor pairing, memory footprint, drive backplane, storage controller and network adapter so the server arrives built for the workload you're actually running, not a generic spec sheet.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockAbout the HPE ProLiant DL380 Gen9
The HPE ProLiant DL380 Gen9 remains one of the most widely deployed 2U rack servers in enterprise data centres, and for good reason: a flexible drive backplane, dual-socket Xeon E5-2600 v3/v4 compute, and DDR4 memory scaling to 3.0TB make it adaptable to almost any general-purpose or virtualisation role.
Use the configurator below to select processors, memory, storage controller, drive bays and networking to match your workload. Every option shown reflects hardware we can actually build into this chassis, so the specification you configure is the one that arrives.
Typical Use Cases
- Virtualisation hosts running VMware vSphere, Hyper-V or Proxmox
- Database servers benefiting from high DDR4 memory capacity and HPE Persistent Memory
- General-purpose enterprise application and file servers
- Backup targets pairing LFF drive bays with hardware RAID for large usable capacity
- GPU-accelerated workloads using single- or double-wide GPGPU support
- High-density SFF storage nodes with up to 24 front bays plus NVMe Express Bay drives
- Consolidation projects replacing older single-socket or Gen8-era servers
- Development and test environments needing dual-socket headroom without a full refresh
Key Specifications
| Processor | |
|---|---|
| Processor Family | Intel® Xeon® E5-2600 v3 product family; Intel® Xeon® E5-2600 v4 product family |
| Number of Processors | 1 or 2 |
| Cores Per Processor | 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4 |
| Processor Cache | 10MB L3; 15MB L3; 20MB L3; 25MB L3; 30MB L3; 35MB L3; 40MB L3; 45MB L3; 50MB L3; 55MB L3 |
| Maximum Speed | 3.5GHz |
| Memory | |
| Maximum Memory | 3.0TB |
| Memory Slots | 24 DIMM slots |
| Memory Type | DDR4 SmartMemory |
| Storage | |
| Drive Support | (4) or (12) LFF SAS/SATA/SSD; (8), (10), (16), (18) or (24) SFF SAS/SATA/SSD; (2) SFF Rear drive optional or (3) LFF Rear drive optional; (6) SFF NVMe (optional) |
| Storage Controllers | |
| Storage Controller | (1) Dynamic Smart Array B140i and/or (1) Smart Array P440ar; (1) Smart Array P840 |
| Expansion Slots | |
| PCIe Expansion Slots | (6) Maximum |
| Networking | |
| Network Controller | 1Gb 331i Ethernet Adapter 4 Ports per controller and/or Optional FlexibleLOM |
| Chassis | |
| Form Factor | 2U Rack |
| Power | |
| Power Supply Type | (2) Flex Slot |
| Management | |
| Infrastructure Management | iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), HP Insight Control (optional) |
