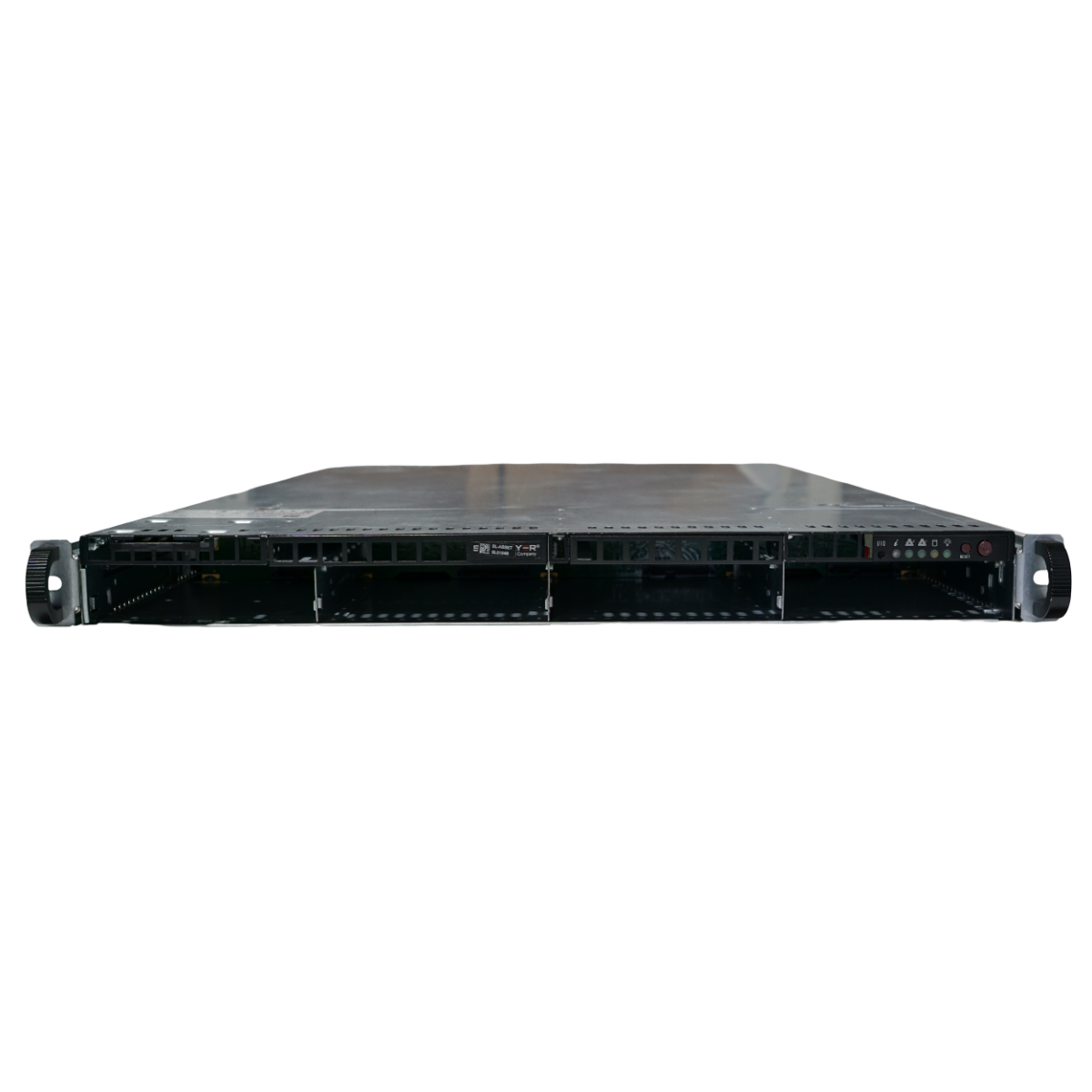

CSE-819U X11DPU
Supermicro
Supermicro SuperServer 6019U-TN4R4T - 1U Dual-Socket Rack Server
Built on the CSE-819U chassis and Super X11DPU motherboard, the 6019U-TN4R4T is a 1U dual-socket platform designed for dense compute and I/O-heavy workloads that need to stay within a single rack unit.
It takes two LGA 3647 Xeon Scalable processors (1st or 2nd Gen, up to 28 cores each) linked by dual UPI at up to 10.4GT/s, giving strong inter-socket bandwidth for NUMA-sensitive applications.
With 24 DIMM slots supporting up to 6TB of DDR4-2933 RDIMM/LRDIMM, four hot-swap NVMe/SATA3 hybrid drive bays, quad 10GBase-T networking, and dual redundant 750W Platinum-rated power supplies, it covers memory-heavy, storage-fast and network-intensive roles without needing a second rack unit.
This specific SKU has been discontinued by Supermicro. We keep the specification on file for reference; get in touch with our sales team and we'll help you find a comparable current-generation platform to configure to order.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockTypical Use Cases
- Virtualisation hosts running VMware ESXi, Proxmox or Hyper-V clusters
- Dual-socket database servers needing large ECC memory footprints
- High-throughput file and NVMe storage nodes with 10GbE connectivity
- HPC and render-farm compute nodes needing high core density in 1U
- Network function virtualisation and edge aggregation appliances
- Software-defined storage and Ceph/ZFS building blocks
- Development and test lab servers requiring dual-CPU NUMA behaviour
Key Specifications
| Processor | |
|---|---|
| Socket Type | Dual Socket P (LGA 3647) |
| Supported Processors | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors |
| UPI Speed | Dual UPI up to 10.4GT/s |
| CPU TDP Support | 70-205W |
| Maximum Cores | Up to 28 Cores |
| Memory | |
| DIMM Slots | 24 DIMM slots |
| Maximum Capacity | Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM |
| Supported Memory Types | 2933MHz/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM, 2666 ECC DDR4 NVDIMM, Intel® Optane™ DCPMM |
| Storage Controllers | |
| Chipset | Intel® C621 chipset |
| SATA Ports | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SATA/NVMe Ports | 4 SATA3 (6Gbps)/NVMe ports |
| Hot-swap Drive Bays | 4 Hot-swap 3.5" drive bays: 4 NVMe/SATA3 hybrid ports (optional SAS3 via AOC) |
| M.2 Slots | 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts, 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2 |
| SATA DOM Support | 2 SATA DOM (Disk on Module) support with embedded power |
| Networking | |
| Network Ports | 4x 10GBase-T ports via AOC-UR-i4XT (Intel® X540 10GBase-T), 4 RJ45 10GBase-T Ethernet ports, 1 RJ45 Dedicated IPMI LAN port |
| Management | |
| Graphics | ASPEED AST2500 BMC |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 with virtual media over LAN and KVM-over-LAN support |
| Management Software | Intel® Node Manager, IPMI 2.0, KVM with dedicated LAN, NMI, SSM, SPM, SUM, SuperDoctor® 5 |
| BIOS Type | AMI 32Mb SPI Flash ROM |
| Operating Temperature | 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
| RoHS Compliance | RoHS Compliant |
| Expansion Slots | |
| PCI-Express Slots | 2 PCI-E 3.0 x16 (Full-height, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 internal LP) |
| USB Ports | 3 USB 3.0 ports (2 rear, 1 Type A) |
| Video Ports | 2 VGA ports (1 rear, 1 onboard) |
| Serial Port | 1 Serial header |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-819UTS-R751P-T |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 29.7" (754mm) |
| Net Weight | 26 lbs (11.8 kg) |
| Gross Weight | 41 lbs (18.6 kg) |
| Color | Black |
| System Cooling | |
| Fans | 8 Heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power | |
| Power Supply | 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output |
| AC Input | 100-127Vac, 50-60Hz; 200-240Vac, 50-60Hz |
| +12V Output | Max: 62.5A & Min: 0A (100Vac-127Vac), Max: 62.5A & Min: 0A (200Vac-240Vac) |
| +12V Standby Output | Max: 2.1A, Min: 0A |
| Power Supply Certification | Platinum Level Certified 94%+ |
