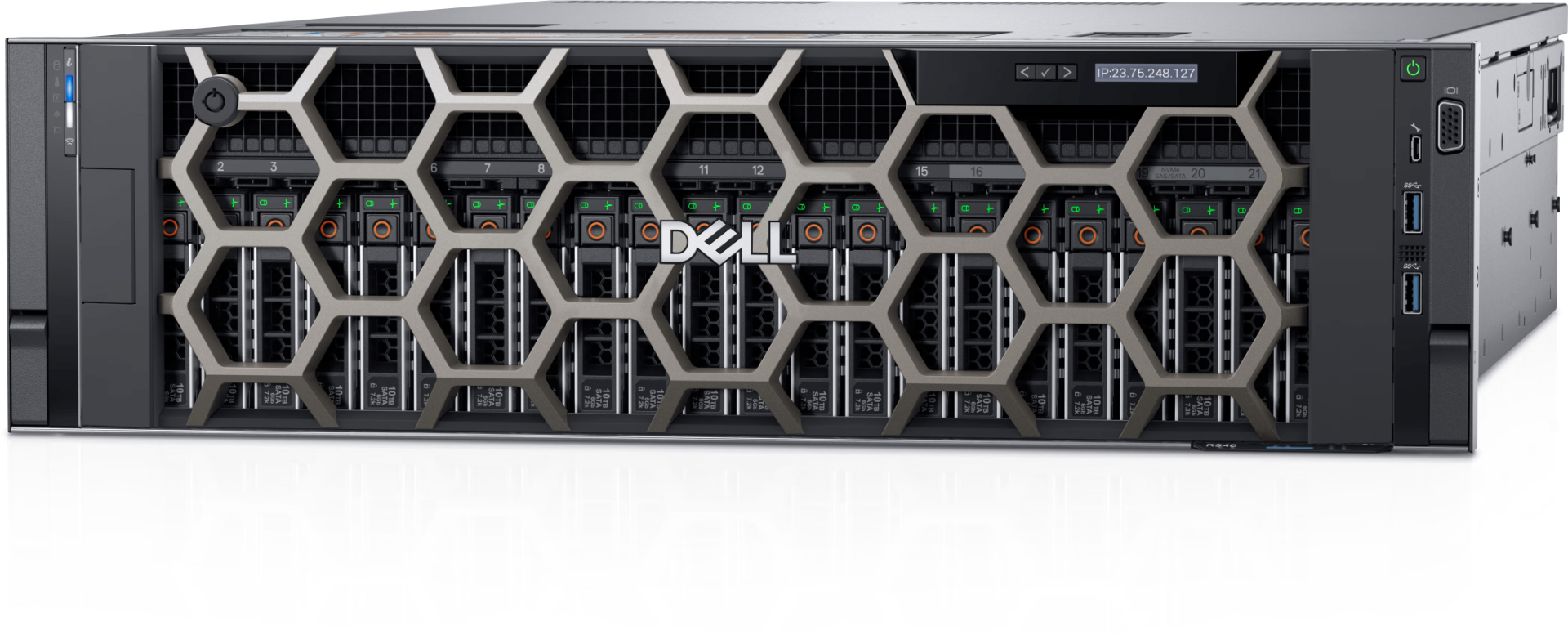

PowerEdge R940
Dell
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
Loading options…
Auto
Auto
No matches found.
Selected
Please resolve the following:
Warnings:
Share or save this configuration
Configuration Summary
No components selected yet.
Required options not yet complete
Contact Us About Stock
Compatibility Guaranteed
UK Expert Support
Secure Checkout
Order now for dispatch Wednesday 2nd September
Key Specifications
| Processor | |
|---|---|
| No of Processors | Up to four |
| Processor Family | 2nd Generation Intel Xeon Scalable |
| Cores Per Processor | up to 28 cores each |
| Memory | |
| Memory Type | DDR4 RDIMM/LRDIMM, registered ECC |
| Memory Slots | 48 DDR4 DIMM slots |
| Memory Speed | up to 2933MT/s |
| Maximum Memory | 15.36TB max with DCPMM and LRDIMM |
| Maximum Capacity | 6TB max DDR4, 384GB Max NVDIMM, 12.28TB max DCPMM |
| Storage Controllers | |
| Internal controllers | PERC H330, H730P, H740P, HBA330 |
| External Controller | H840, 12 Gbps SAS HBA |
| Software RAID | S140 |
| Boot Storage Option | BOSS: HWRAID 2 x M.2 SSDs 240GB, 480GB |
| SD Module | Internal Dual SD Module |
| Storage | |
| Drive Bays 2.5 inch | Up to 24 x 2.5" SAS/SATA (HDD/SSD) |
| Drive Bays 3.5 inch Max Capacity | up to 12 NVMe PCIe SSD, max 184.32TB |
| Power | |
| Power Supply Options | Platinum 1100W, 1100W 380VDC, 1600W, 2000W, 2400W; Gold 1100W-48VDC; Hot plug power supplies with full redundancy option; 8 hot plug fans with full redundancy |
| Chassis | |
| Form Factor | Rack (3U) |
| Chassis Width | 434mm (17.08") |
| Chassis Depth (3.5 inch HDD) | 784.2mm (30.8") |
| Chassis Weight | 49.9kg (110lbs.) |
| Expansion Slots | |
| PCIe Configuration | Up to 13 x Gen3 slots (3 x8 + 10 x16) |
| I/O Ports | |
| Front USB Ports | 1 x Dedicated iDRAC Direct USB, 2 x USB 3.0 |
| Rear Ports | 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0 |
| Networking | |
| Network Interface | 4x 1GbE, 4x 10GbE, 2x 10GbE+2x 1GbE, or 2x 25GbE |
| Management | |
| Embedded Management | IPMI 2.0 compliant, iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish, Quick Sync 2 wireless module (optional) |
| Security | |
| TPM | TPM 1.2/2.0 optional |
| Security Features | Cryptographically signed firmware, Secure Boot, Silicon Root of Trust, System Lockdown (requires iDRAC Enterprise or Datacenter), Secure erase |
