Dell PowerEdge R730 2U Rack Server | Configure to Order
PowerEdge R730
Dell

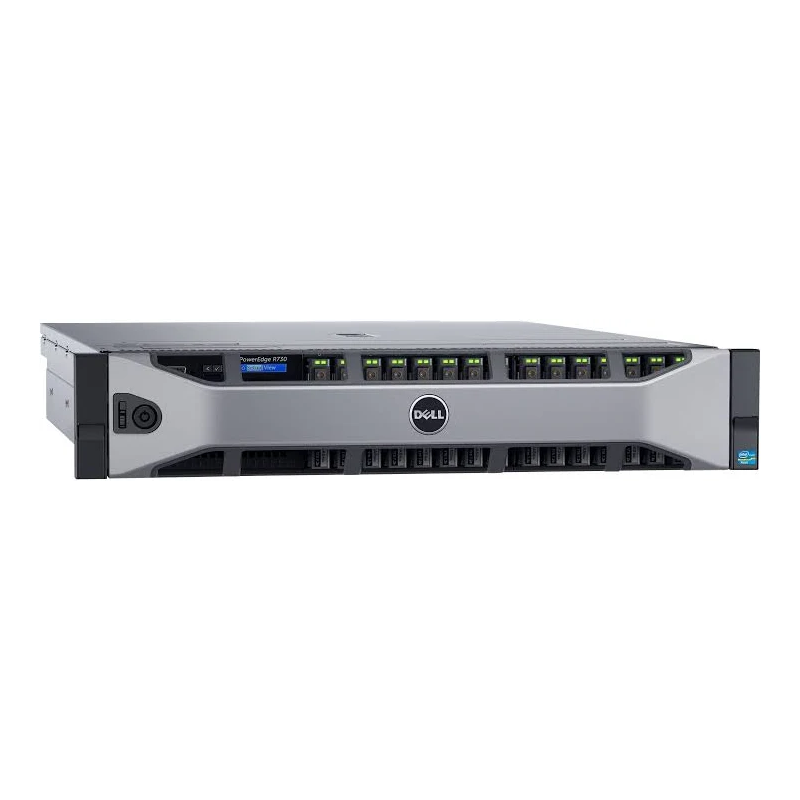

Dell PowerEdge R730 – 2U Dual-Socket Rack Server
The PowerEdge R730 is a 2U rack server built around two Intel Xeon E5-2600 v4 processors, giving up to 22 cores per socket and a substantial jump in per-core performance and cache over earlier E5-2600 v3 platforms.
With 24 DDR4 DIMM slots and up to seven PCIe 3.0 expansion slots, the R730 has the memory bandwidth and I/O headroom to run dense virtual machine environments, database engines and HPC data nodes without bottlenecking on RAM or peripheral throughput.
Storage is genuinely flexible: choose a 16 x 2.5" backplane for I/O-heavy virtualisation and databases, or an 8 x 3.5" backplane for up to 64TB of low-cost, high-capacity storage suited to data warehousing and business intelligence. PERC H330/H730/H730P RAID controllers and internal GPU accelerator support extend that flexibility into VDI and imaging workloads.
Configure the exact combination of processors, memory, drives, RAID controller and network daughter card you need through the options below, and the server is built to that specification before it ships.
All hard drives are tested to 100% health · All SSDs are tested to 90-100% health
No matches found.
Share or save this configuration
No components selected yet.
Required options not yet complete
Contact Us About StockAbout the Dell PowerEdge R730
The Dell PowerEdge R730 pairs dual Intel Xeon E5-2600 v4 processors with up to 24 DIMM slots of DDR4 memory in a 2U chassis, giving you the compute density and storage flexibility to run virtualisation, databases and HPC workloads from a single platform. Choose between 16 x 2.5" or 8 x 3.5" drive configurations depending on whether you need I/O density or raw capacity.
Configure your R730 below with the processor, memory, storage and RAID controller combination that suits your workload — every unit is refurbished, tested and built to order before dispatch.
Typical Use Cases
- Virtualisation hosts running VMware ESXi, Hyper-V or Citrix XenServer
- Data warehousing and business intelligence platforms needing dense 3.5" storage
- Virtual desktop infrastructure deployments leveraging internal GPU accelerators
- Relational database servers requiring high core counts and large DDR4 memory pools
- E-commerce platforms handling mixed OLTP and web-tier workloads
- High-performance computing data nodes processing large sequential datasets
- Medical imaging systems using GPU-accelerated rendering
- Consolidated infrastructure for small-to-midsize enterprise data centres
Key Specifications
| Chassis | |
|---|---|
| Form Factor | 2U rack |
| Chassis Width | 44.40 cm (17.49 in) |
| Chassis Depth (3.5 inch HDD) | 68.40 cm (26.92 in) |
| Processor | |
| Processor Family | Intel® Xeon® processor E5-2600 v4 product family |
| Processor Count | 2 |
| Cache | 2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18, 22 |
| Chipset | |
| Chipset | Intel C610 series chipset |
| Memory | |
| Memory Type | DDR4 |
| Memory Speed | up to 2400MT/s |
| Memory Slots | 24 DIMM slots |
| Maximum Capacity | Up to 3TB |
| Expansion Slots | |
| PCIe Configuration | Up to 7 x PCIe 3.0 plus dedicated PERC slot |
| Storage Controllers | |
| Internal controllers | PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P |
| External Controller | PERC H830 |
| SAS Host Bus Adapters | 12Gbps SAS HBA |
| SD Module | internal dual SD module |
| Storage | |
| Drive Bays 2.5 inch | Up to 16 x 2.5" HDD |
| Drive Bays 3.5 inch | Up to 8 x 3.5" HDD |
| Drive Bays 3.5 inch Max Capacity | 8 x 3.5" – up to 64TB via 8TB hot-plug NL SAS hard drives |
| Networking | |
| Network Interface | 4 x 1GbE, 2 x 10+2GbE, 4 x 10GbE NDC |
| Power | |
| Power Supply Options | Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W AC power supply |
| Management | |
| Embedded Management | iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) |
